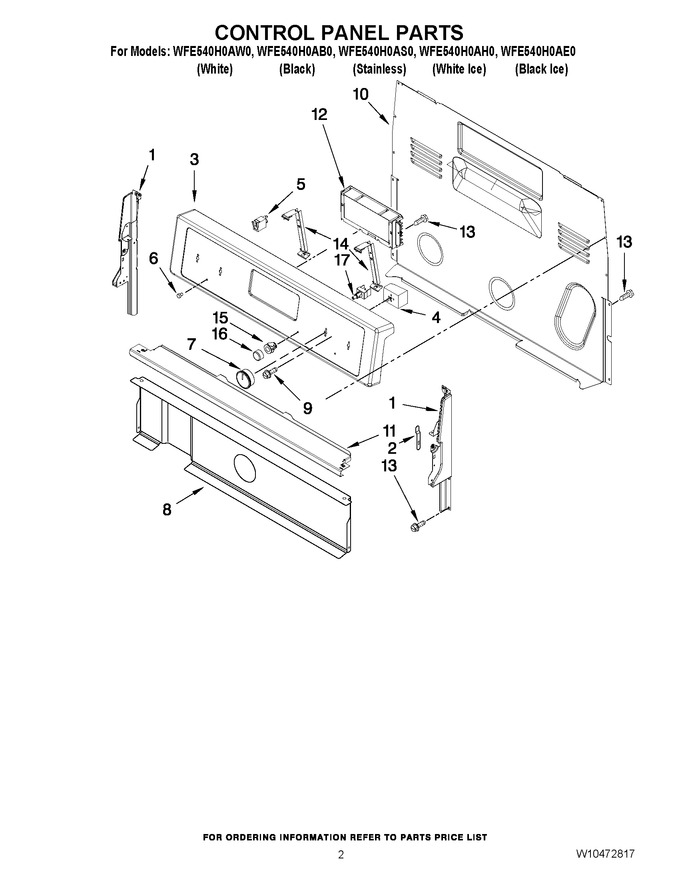

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Lh) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219370 | Endcap (white Rh) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1 | W11219664 | Endcap (black Lh) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1 | W11219665 | Endcap (black Rh) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 2 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 3 | W10370097 | Panel, Backguard (white) |
|
- | |||||
| 3 | W10339403 | Panel, Backguard (stainless) |
|
- | |||||
| 3 | W10370093 | Panel, Backguard (black) |
|
- | |||||
| 4 | WPW10434452 | Switch, Infinite (left & Right Front) (Replaces: W10434452) |
|
Immediately | $ 129.51 | ||||
| 4 | 5500-287 | Switch, Infinite (left - Right Rear) (Replaces: 3148951) |
|
Immediately | $ 50.99 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 5.91 | ||||
| 7 | WPW10430806 | Knob (stainless (white Ice, Black Ice, And Stainless Models)) (Replaces: W10430806) |
|
Immediately | $ 23.50 | ||||
| 7 | W10490035 | Knob (white) (Replaces: W10430787) |
|
$ 20.05 | |||||
| 7 | WPW10490036 | Knob (black) (Replaces: W10430786) |
|
$ 18.97 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10525121 | Brkt-mntg,console (Replaces: W10182322) |
|
$ 88.97 | |||||
| 12 | WPW10586736 | Control, Range (lcc195) (black) (Replaces: W10348707) |
|
$ 429.36 | |||||
| 12 | WPW10586735 | Control, Range (lcc195) (white) (Replaces: W10348708) |
|
$ 429.36 | |||||
| 12 | WPW10586737 | Control, Range (lcc195) (stainless (stainless & Black Ice Models Only)) (Replaces: W10349740) |
|
$ 510.80 | |||||
| 12 | W10475744 | Control, Range (lcc195) (white Chromium (white Ice Model)) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | W11230932 | Mounting, Bracket (Replaces: W10324410) |
|
Immediately | $ 76.33 | ||||
| 15 | W10315960 | Bezel, Keep-warm (stainless) |
|
$ 63.42 | |||||
| 15 | W10217760 | Bezel, Keep Warm (white) |
|
$ 23.32 | |||||
| 15 | W10217758 | Bezel, Keep Warm (black) |
|
$ 25.79 | |||||
| 16 | W10918209 | Button, Keep Warm (stainless) (Replaces: W10315961) |
|
$ 18.19 | |||||
| 16 | 9757492 | Button, Keep Warm (white) |
|
$ 86.41 | |||||
| 16 | 9758491 | Button, Keep Warm (black) |
|
$ 17.77 | |||||
| 17 | WP8272820 | Switch, Warm Zone (Replaces: 8272820) |
|
$ 161.02 |
