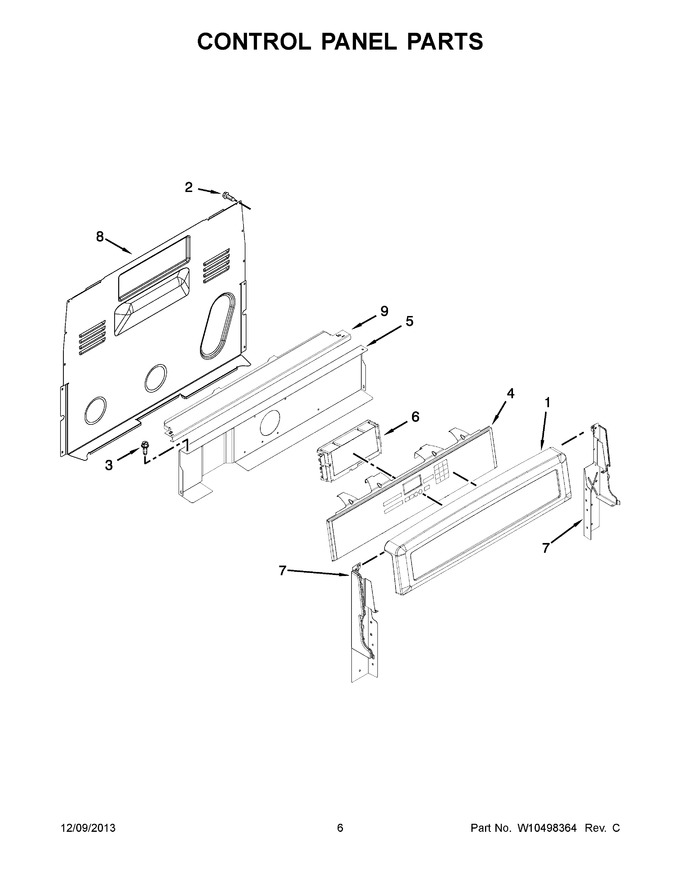

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10318550 | Panel, Backguard (stainless) (Replaces: W10318550) |
|
$ 245.91 | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 3 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 4 | W10678666 | Active Overlay Assembly (stainless) (Replaces: W10318563) |
|
$ 311.53 | |||||
| 5 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 6 | WPW10340311 | Control Board (Replaces: W10340311) |
|
Immediately | $ 445.03 | ||||
| 7 | W11219665 | Endcap Black (right Hand) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 7 | W11219664 | Endcap Black (left Hand) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 8 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 9 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 |
