Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 98010414 Liner, Door Appelez-nous -
2 W10157839 Retainer, Insulation Appelez-nous -
3 98009525 Panel, Oven Door Appelez-nous -
4 W10205601 Seal, Oven Door Appelez-nous -
5 98004629 Retainer (left) Appelez-nous -
5 98004564 Retainer (right) Appelez-nous -
6 WP59002061 Screw   (Replaces: 98004993) Special Order $ 7.36

7 W10208853 Insulation, Door Appelez-nous -
8 W11206744 Screw   (Replaces: 98008699) Special Order $ 12.81

9 WP3400805 Screw   (Replaces: 98004219) Special Order $ 6.80

10 WP8533842 Screw   (Replaces: 8533842) Special Order $ 6.57

11 3196166 Screw   (Replaces: 98006727) Special Order $ 6.62

12 98009307 Door, Broil Appelez-nous -
13 W10208117 Bracket, Panel Appelez-nous -
14 WP98004650 Nut, Push   (Replaces: 98004650) Special Order $ 6.57

15 6610364 Clip, Door Special Order $ 10.65

16 W10837731 Screw   (Replaces: 98006633) Special Order $ 7.47

17 W10216805 Washer Appelez-nous -
18 WP98004947 Handle, Oven Door   (Replaces: 98004947) Special Order $ 133.92

19 98017873 Hinge, Oven Door Special Order $ 35.95


    View Diagram in Separate Window     Print Icon   Print Part List

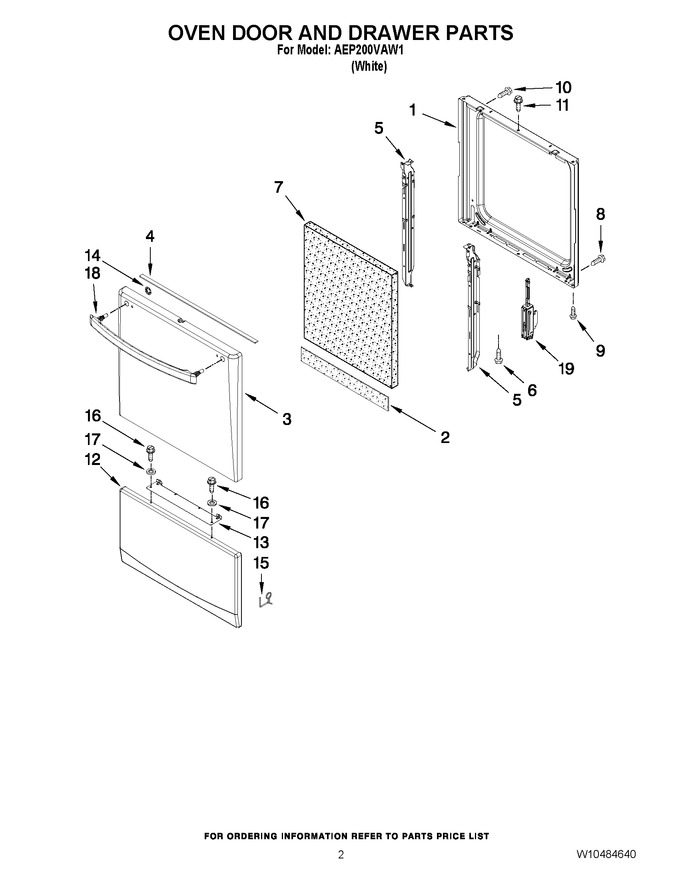

Diagram for AEP200VAW1
