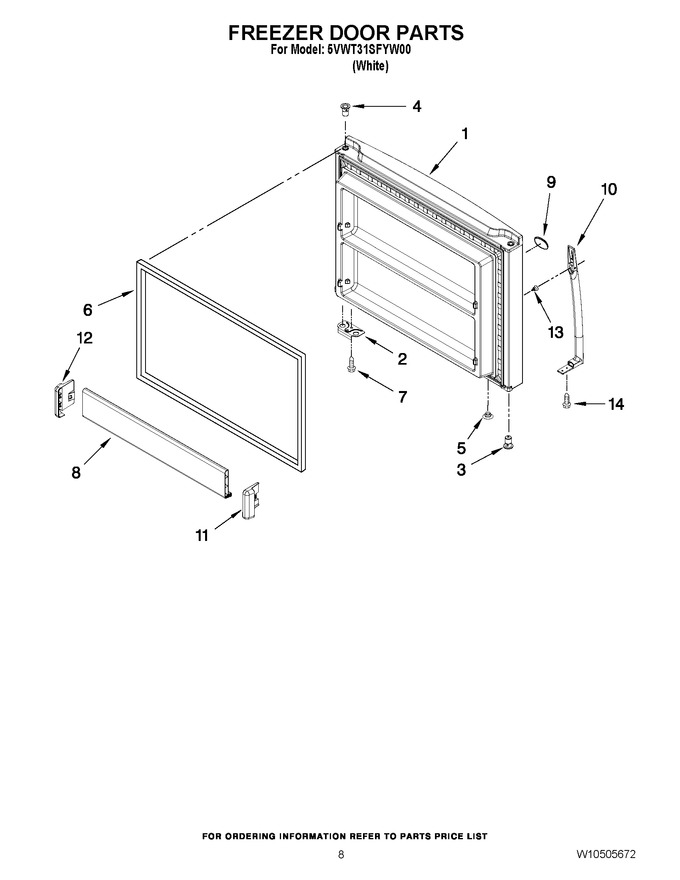

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Refrigerator Door Parts
04 - Shelf Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10406259 | Freezer Door (includes Items 3, 4, 5 & 6) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | W11189115 | Thimble (Replaces: W10334042) |
|
Immediately | $ 11.44 | ||||
| 4 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 7.34 | |||||
| 5 | WP2212648 | Plug, Hinge (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 6 | 2159060 | Door Gasket, Magnetic (Replaces: 2214967) |
|
$ 302.41 | |||||
| 7 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 8 | WPW10469912 | Trim, Door Shelf (Replaces: W10308875) |
|
$ 153.41 | |||||
| 9 | W11178521 | Nameplate (Replaces: W10387117) |
|
Immediately | $ 58.63 | ||||
| 10 | WPW10498429 | Handle (Replaces: W10366325) |
|
$ 157.58 | |||||
| 11 | W10308871 | Endcap Trim Rs |
|
$ 10.44 | |||||
| 12 | W10338485 | Endcap Trim Ls |
|
$ 10.41 | |||||
| 13 | WPW10170540 | Mounting Screw (Replaces: W10170540) |
|
Immediately | $ 9.12 | ||||
| 14 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 |
