01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)

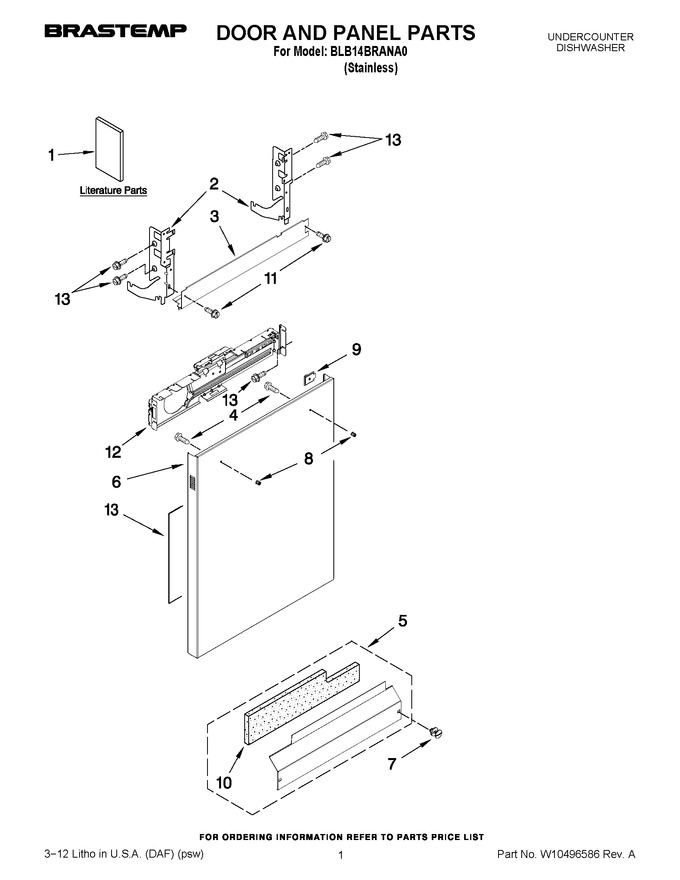

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10470347		Use & Care Guide (portuguese)		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 128.15
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 128.02
3	W10850371		Vapor Barrier Assembly   (Replaces: W10321449)			Immediately	$ 29.59
4	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 6.80
5	W10827631		Access Panel   (Replaces: W10369024)			Immediately	$ 176.08
6	W10474113		Panel, Full Front		Appelez-nous	-
7	WPW10503548		Fastener   (Replaces: W10331789)			Immediately	$ 29.33
8	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 7.98
9	W10319007		Light Pipe				$ 64.80
10	W10831329		Insulation, Access Panel   (Replaces: W10073540)			Immediately	$ 38.97
11	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 58.73
12	W11116870		Bracket, Panel Control   (Replaces: W10194911)				$ 80.96
13	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
