01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

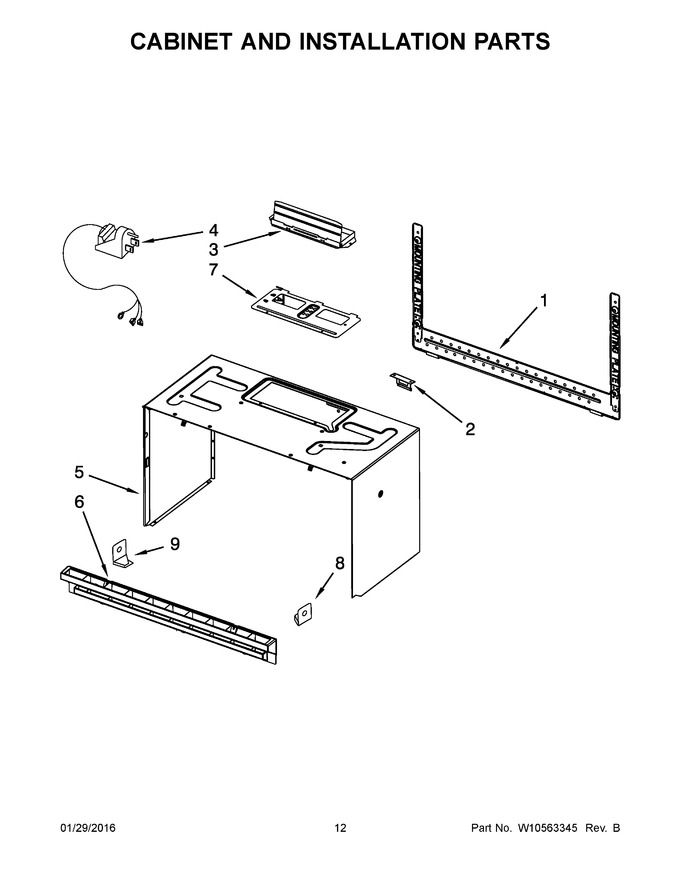

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10269225 | Plate, Mounting (Replaces: W10269225) |
|
$ 72.66 | |||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 33.48 | |||||
| 3 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 76.13 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10269470) |
|
$ 19.40 | |||||
| 5 | W10269454 | Case, Outer (black) |
|
$ 126.39 | |||||
| 6 | W10452075 | Grille, Vent (stainless) |
|
- | |||||
| 7 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 8 | W10703282 | Holder, Vent Right Side (white) (Replaces: W10393276) |
|
$ 9.90 | |||||
| 9 | W11026306 | Holder, Vent Left Side (white) (Replaces: W10393278) |
|
Immediately | $ 6.80 | ||||
| NI | 8205948 | Miscellaneous Parts, Hardware, Installation |
|
$ 24.21 | |||||
| NI | 8205871 | Miscellaneous Parts, Template, Upper |
|
$ 24.66 | |||||
| NI | WP8169704 | Miscellaneous Parts, 1/4-20x3" Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 12.02 | ||||
| NI | W10333875 | Miscellaneous Parts, Harness, Main |
|
- | |||||
| NI | W10539841 | Miscellaneous Parts, Headlamp/tt Wire Assembly (Replaces: W10269479) |
|
$ 18.88 | |||||
| NI | W10539842 | Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer (Replaces: W10163436) |
|
$ 15.03 | |||||
| NI | W10470168 | Miscellaneous Parts, Harness Wire, Ntc (Replaces: W10163439) |
|
$ 38.47 |
