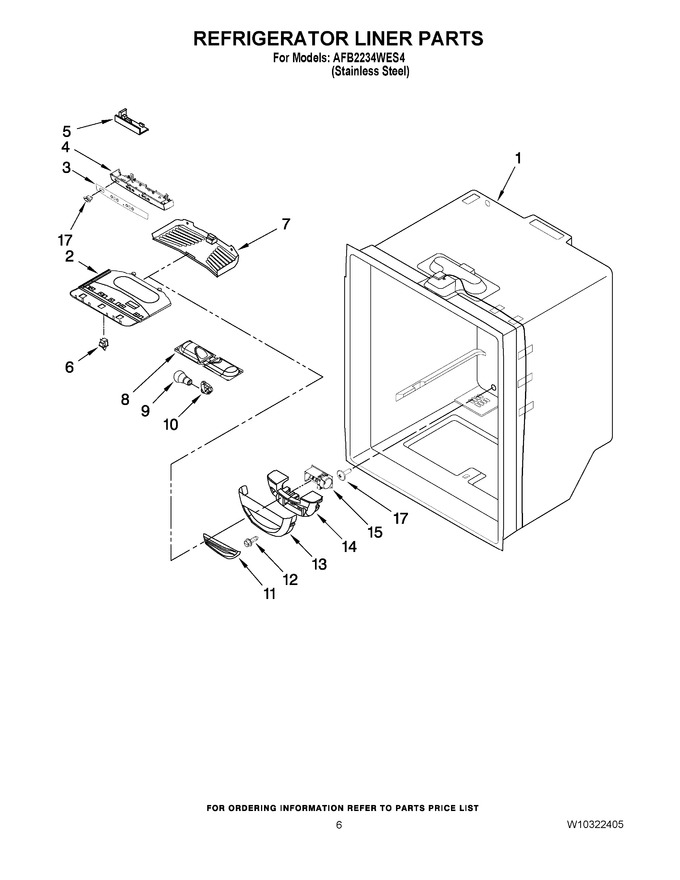

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 12806303 | Module, Light |
|
- | |||||
| 3 | W10317181 | Overlay |
|
$ 74.28 | |||||
| 4 | 12806407 | Module, Control |
|
$ 48.18 | |||||
| 5 | WPW10503278 | Board, Control (Replaces: 12784415V) |
|
Immediately | $ 56.16 | ||||
| 6 | W11291138 | Switch, Light (2) (Replaces: 12466104) |
|
Immediately | $ 33.00 | ||||
| 7 | W11284721 | Cover, Light (Replaces: 12806501) |
|
$ 95.42 | |||||
| 8 | 12806601 | Housing, Light (Replaces: 12806601V) |
|
$ 99.18 | |||||
| 9 | W11679940 | Bulb, Light (2) (Replaces: W10194422V) |
|
Immediately | $ 10.17 | ||||
| 10 | W11447232 | Socket, Light (2) (Replaces: 12570701V) |
|
Immediately | $ 12.48 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
$ 7.70 | |||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 11.90 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 106.79 | |||||
| 14 | W11750607 | Insulation (Replaces: 13012402) |
|
$ 45.14 | |||||
| 15 | WPW10196393 | Control, Damper (includes Harness) (Replaces: W10196393) |
|
Immediately | $ 200.47 | ||||
| 17 | W11478401 | Switch, Energy Saver (Replaces: 12861601) |
|
Immediately | $ 224.33 | ||||
| NI | W11478401 | Harness, Controls (refrigerator) (Replaces: W10216622) |
|
Immediately | $ 224.33 |
