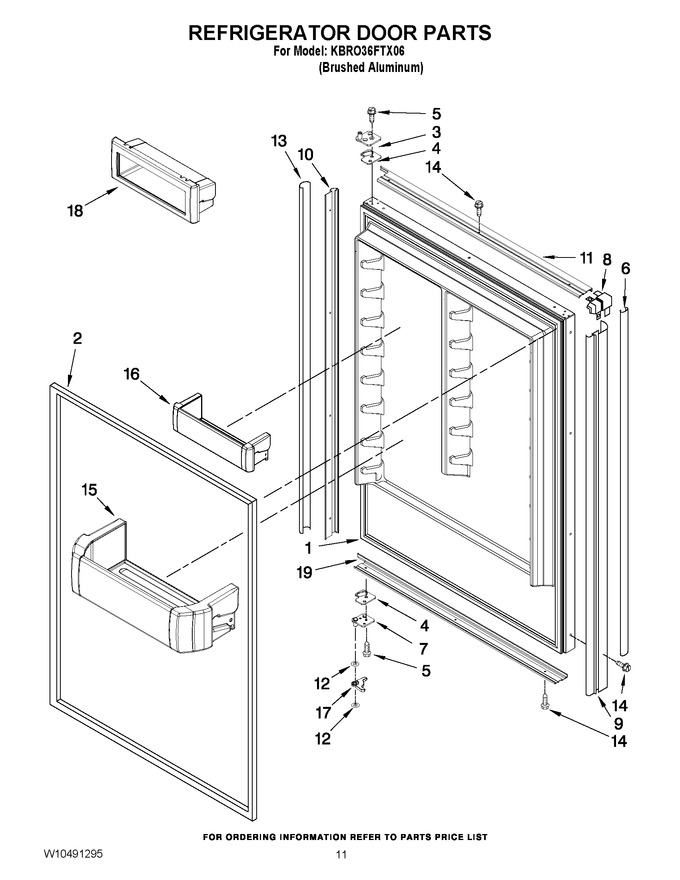

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10192039		Door, Refrigerator (includes Item 2)		Appelez-nous	-
2	2302709		Gasket, Door   (Replaces: 2300184)				$ 295.47
3	2256384		Hinge Assy, Top				$ 69.79
4	W11673500		Spacer, Hinge   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	2209084S		Cover, Trim (handle Side)				$ 123.06
7	2256280		Hinge Assy, Bottom				$ 68.49
8	2207457		Trim, Corner				$ 51.41
9	2309475		Trim, Door (handle Side)				$ 305.29
10	2309476		Trim, Door (hinge Side)		Appelez-nous	-
11	2309473		Trim, Door (top)				$ 260.00
12	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 10.58
13	2266942S		Cover, Trim (hinge Side)				$ 97.89
14	WP8281250		Screw   (Replaces: 8281250)				$ 10.28
15	W10323749		Shelf, Door (gallon)				$ 123.16
16	W11590561		Shelf, Door   (Replaces: W10323603)				$ 84.81
17	W10188434		Gap Cover, Bottom				$ 61.16
18	W10323044		Utility Bin Assy				$ 119.32
19	2309474		Trim, Door (bottom)				$ 234.22
