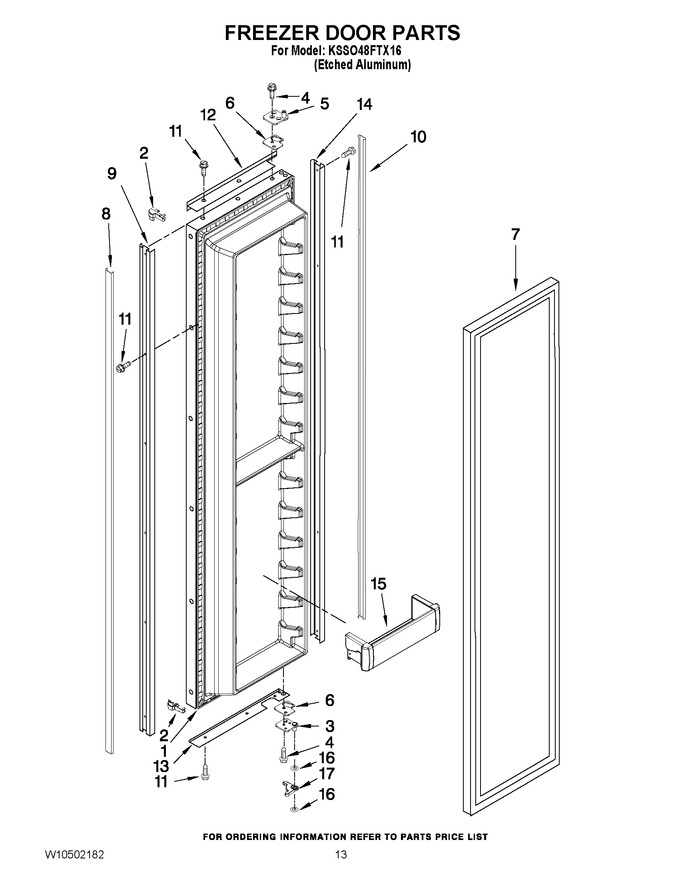

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193487		Freezer Door (includes Item 7)		Appelez-nous	-
2	2207457		Trim, Corner				$ 51.41
3	2252294		Hinge Assembly, Bottom		Appelez-nous	-
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
5	2252295		Hinge Assembly, Top				$ 51.53
6	W11673500		Spacer, Hinge   (Replaces: 2316804)			Immediately	$ 117.33
7	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 332.86
8	2314003S		Cover, Trim (handle Side)				$ 157.17
9	2309497S		Trim, Door (handle Side)				$ 290.72
10	2259448S		Cover Assy, Trim (hinge Side)				$ 161.55
11	WP8281250		Screw   (Replaces: 8281250)				$ 10.28
12	2309490S		Trim, Door (top)				$ 224.00
13	2309496S		Trim, Door (bottom)				$ 220.94
14	2309498S		Trim, Door (hinge Side)				$ 291.94
15	W11590561		Shelf, Door   (Replaces: W10323603)				$ 84.81
16	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 10.58
17	2006342		Gap Cover, Bottom		Appelez-nous	-
