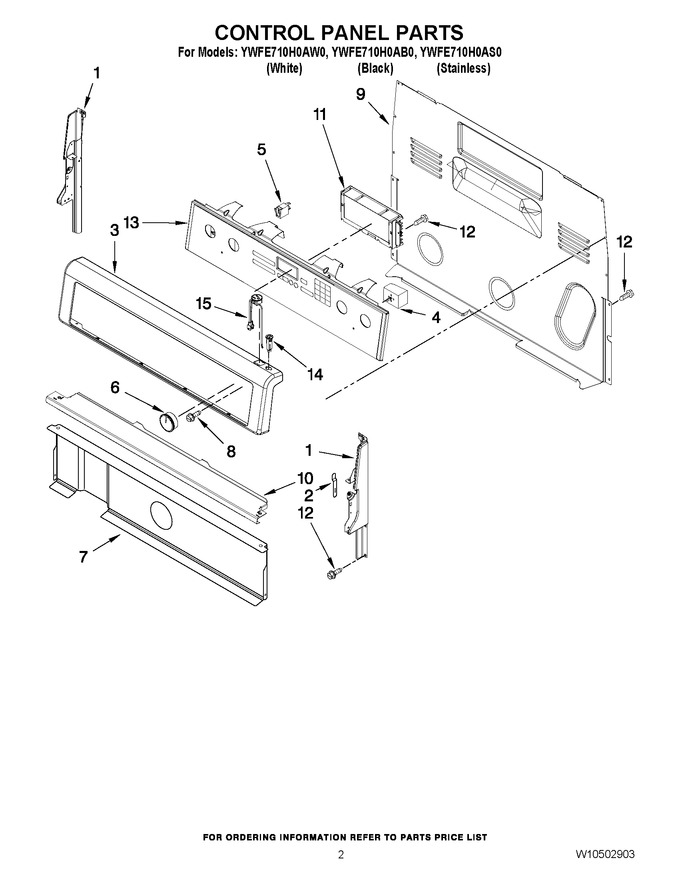

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black Lh) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1 | W11219365 | Endcap (white Lh) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219370 | Endcap (white Rh) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1 | W11219665 | Endcap (black Rh) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 2 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 3 | W10318554 | Panel, Backguard (black) |
|
$ 128.93 | |||||
| 3 | WPW10318553 | Panel, Backguard (stainless) (Replaces: W10318553) |
|
$ 269.27 | |||||
| 3 | WPW10318555 | Panel, Backguard (white) (Replaces: W10318555) |
|
$ 195.88 | |||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 4 | WPW10411934 | Switch, Infinite (left Rear) (Replaces: W10411934) |
|
Immediately | $ 98.85 | ||||
| 4 | WPW10434452 | Switch, Infinite (left & Right Front) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | W10490035 | Knob (white) |
|
$ 20.05 | |||||
| 6 | WPW10490036 | Knob (black) (Replaces: W10490036) |
|
$ 18.97 | |||||
| 6 | WPW10430806 | Knob (stainless) (Replaces: W10430806) |
|
Immediately | $ 23.50 | ||||
| 7 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 8 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 9 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 10 | W10525121 | Brkt-mntg, Console (Replaces: W10182322) |
|
$ 88.97 | |||||
| 11 | WPW10340304 | Control, Range (mrc) (Replaces: W10340304) |
|
Immediately | $ 418.52 | ||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 13 | W10318557 | Overlay, Active (white) |
|
$ 184.77 | |||||
| 13 | W10318556 | Overlay, Active (black) |
|
$ 190.11 | |||||
| 14 | WP9757601 | Breaker, Circuit (15 Amp) (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 14 | WP9757602 | Breaker, Circuit (15 Amp) (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 15 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 100.00 | ||||
| 15 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 16.62 |
