SELECT A DIAGRAM

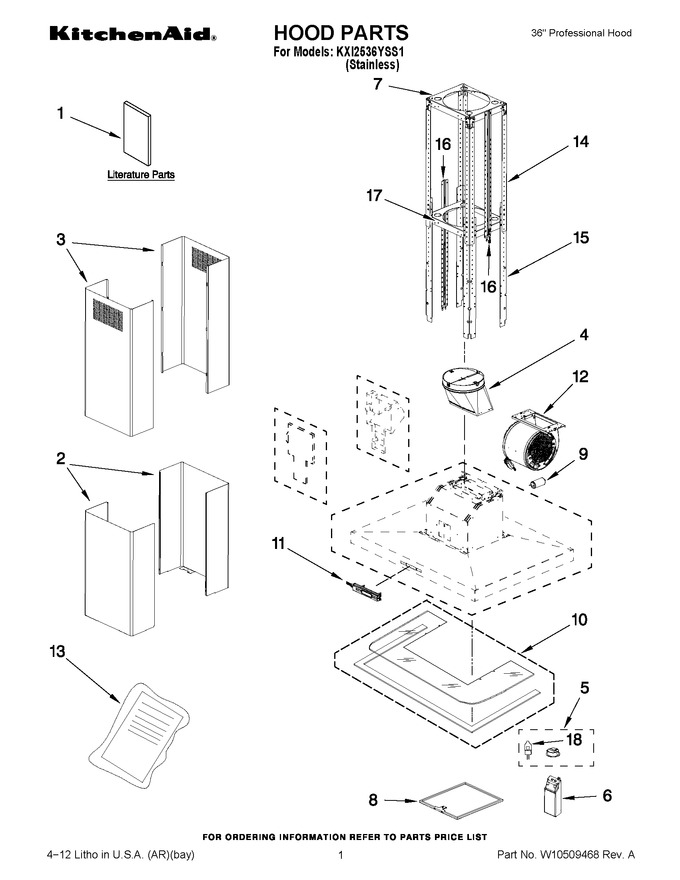

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10331006 | Use & Care Guide |
|
- | |||||
| 2 | W11321565 | Chimney, Lower (Replaces: W10351830) |
|
$ 358.34 | |||||
| 3 | W10351831 | Chimney, Upper |
|
$ 301.22 | |||||
| 4 | WPW10313841 | Damper Assembly (Replaces: W10313841) |
|
$ 179.54 | |||||
| 5 | WP8186678 | Bulb Assembly (Replaces: 8186678) |
|
$ 73.21 | |||||
| 6 | W11186486 | Transformer (Replaces: 8186686) |
|
Immediately | $ 206.24 | ||||
| 7 | W10297052 | Support, Hangar |
|
- | |||||
| 8 | W10169961A | Filter, Grease (Replaces: W10169961) |
|
Immediately | $ 37.65 | ||||
| 9 | W10256657 | Capacitor |
|
Immediately | $ 84.93 | ||||
| 10 | W10370561 | Glass Assembly |
|
$ 368.71 | |||||
| 11 | WPW10727063 | Switch, Push Button (Replaces: W10504432) |
|
$ 234.46 | |||||
| 12 | WPW10291577 | Fan Assembly (Replaces: W10291577) |
|
$ 485.51 | |||||
| 13 | W10351832 | Hardware, Install |
|
- | |||||
| 14 | W10351906 | Support, Upper Vertical |
|
- | |||||
| 15 | W10351905 | Support, Lower Vertical |
|
- | |||||
| 16 | W10293054 | Support Upper Duct Cover |
|
$ 30.63 | |||||
| 17 | W10293065 | Support, Flange |
|
- | |||||
| 18 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 26.35 | ||||
| NI | W10412939 | Charcoal Filter Kit (Replaces: W10294730) |
|
Immediately | $ 66.98 | ||||
| NI | W11430929 | Recirculation Kit (Replaces: W10294734) |
|
$ 153.23 | |||||
| NI | W10272078 | Chimney Extension Kit |
|
$ 1,005.63 |
