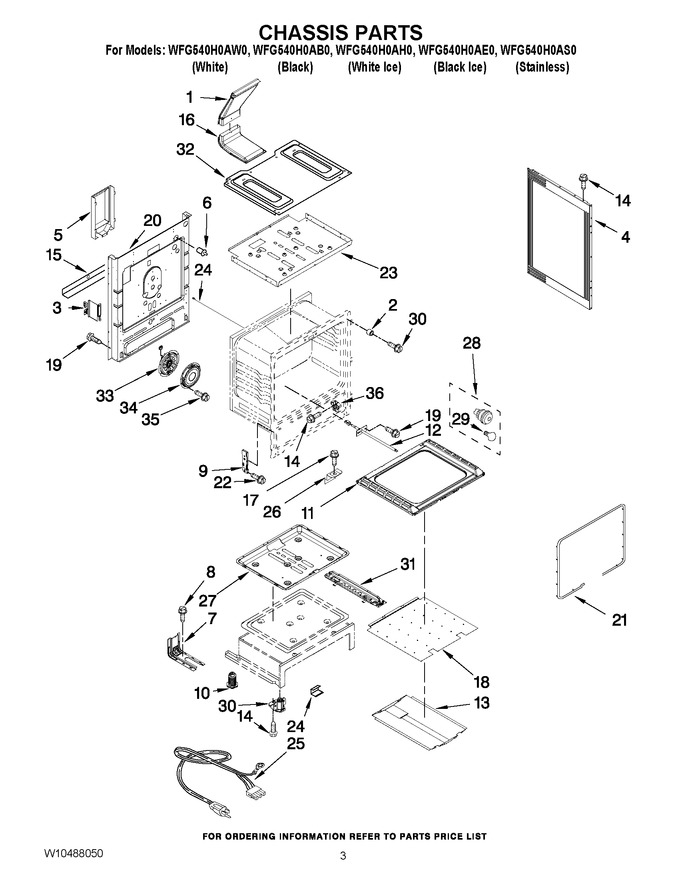

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10314347 | Assembly, Flue |
|
$ 272.28 | |||||
| 2 | W10877054 | Spacer - Door (Replaces: 9758701) |
|
Immediately | $ 50.45 | ||||
| 3 | W10273002 | Support, Oven |
|
$ 68.71 | |||||
| 4 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 160.65 | ||||
| 4 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 182.19 | |||||
| 5 | W10158780 | Cover, Convection |
|
$ 106.63 | |||||
| 6 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 146.71 | ||||
| 7 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 8 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 9 | W10647259 | Hinge, Receiver (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 10 | WPW10058460 | Foot, Leveler (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 11 | WPW10211368 | Bottom, Oven (Replaces: W10211368) |
|
Immediately | $ 303.98 | ||||
| 12 | WPW10181986 | Sensor, Rtd (Replaces: W10181986) |
|
Immediately | $ 96.15 | ||||
| 13 | W11775243 | Baffle, Burner (Replaces: 3601P356-45) |
|
$ 82.32 | |||||
| 14 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 15 | W10435470 | Brace, Main Back |
|
$ 73.57 | |||||
| 16 | W11243157 | Assembly, Upper Flue (Replaces: W10311326) |
|
$ 333.32 | |||||
| 17 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 18 | W10323077 | Diffuser, Flame |
|
$ 253.60 | |||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 20 | W10273005 | Back, Main |
|
- | |||||
| 21 | W11562931 | Seal, Oven (Replaces: W10162385) |
|
Immediately | $ 78.98 | ||||
| 22 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 23 | WPW10273195 | Shield, Heat (Replaces: W10273195) |
|
$ 170.87 | |||||
| 24 | W11370463 | Rod, Rear Door (Replaces: W10273192) |
|
Immediately | $ 60.18 | ||||
| 25 | W11582239 | Cord, Power (Replaces: 9757891) |
|
$ 15.83 | |||||
| 26 | W10035900 | Support, Oven Bottom |
|
$ 12.92 | |||||
| 27 | W11379356 | Pan, Bake (Replaces: W10273204) |
|
$ 72.02 | |||||
| 28 | W11594027 | Light Assembly (Replaces: W10454648) |
|
Immediately | $ 78.31 | ||||
| 29 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 30 | WPW10341186 | Assembly, Foot (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 31 | W11818353 | Rail, Base (left Hand) (Replaces: W10390007) |
|
$ 56.39 | |||||
| 31 | W11818353 | Rail, Base (right Hand) (Replaces: W10390008) |
|
$ 56.39 | |||||
| 32 | W11379351 | Burner Box (Replaces: 8273036) |
|
$ 57.77 | |||||
| 33 | WPW10389555 | Motor, Fan (convection) (Replaces: W10389555) |
|
$ 268.43 | |||||
| 34 | WPW10346154 | Cover, Convection (Replaces: W10346154) |
|
Immediately | $ 69.90 | ||||
| 35 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 36 | W10763667 | Glide, Drawer (Replaces: W10317898) |
|
Immediately | $ 96.91 | ||||
| NI | W10194394 | Insulation, Back |
|
- | |||||
| NI | W10194395 | Insulation, Wrap |
|
$ 80.71 | |||||
| NI | 4820F015-59 | Insulation (strap, Insulation) |
|
$ 8.81 | |||||
| NI | W10432019 | Insulation (alt Cleaning Kit) |
|
- |
