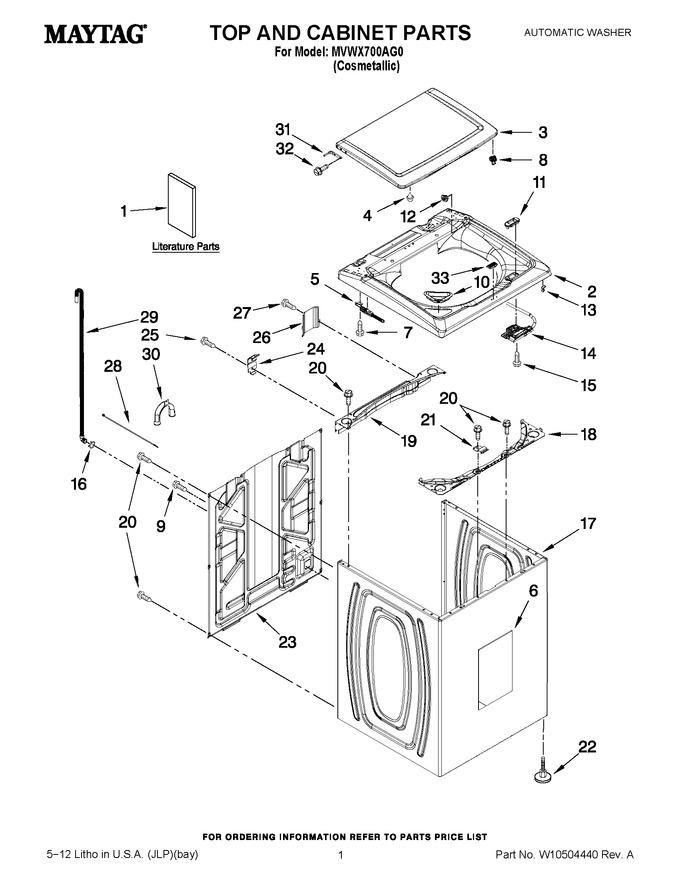

01 - Top And Cabinet Parts


02 - Console And Dispenser Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10240509		Installation Instructions		Appelez-nous	-
1	W10062988		Energy Guide		Appelez-nous	-
1	W10280498		Quick Start Guide		Appelez-nous	-
1	W10468342		Tech Sheet		Appelez-nous	-
1	W10338691		Use & Care Guide		Appelez-nous	-
2	W10420444		Top				$ 296.17
3	W10420439		Lid (includes Items 4 & 8)				$ 321.43
4	WP9724509		Bumper, Lid   (Replaces: 9724509)			Immediately	$ 7.50
5	W10270398		Hinge, Lid (left Hand)				$ 122.27
5	W10270399		Hinge, Lid (right Hand)				$ 118.72
6	W11096159		Damper, Sound   (Replaces: W10414221)				$ 25.86
7	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
8	WPW10239968		Strike, Lid Lock   (Replaces: W10420456)				$ 73.41
9	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
10	W10468332		Dispenser, Bleach		Appelez-nous	-
11	WPW10392092		Bezel, Lid Lock   (Replaces: W10392092)				$ 7.29
12	W10293653		Bearing, Lid Hinge (left)				$ 15.72
12	W10293293		Bearing, Lid Hinge (right)				$ 15.72
13	WP90016		Clip, Lid Lock Harness   (Replaces: 90016)				$ 10.70
14	W10404050		Latch, Lid Lock Assembly   (Replaces: W10238287)			Immediately	$ 73.69
15	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 9.63
16	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
17	W10596398		Cabinet   (Replaces: W10420445)				$ 343.31
18	W11695476		Brace, Cabinet (top - Front)   (Replaces: W10215098)				$ 71.81
19	W11712680		Brace, Cabinet (top - Rear)   (Replaces: W10215099)				$ 93.49
20	WP489128		Screw   (Replaces: W10142728)				$ 10.26
21	WPW10248088		Lock, Top   (Replaces: W10248088)				$ 16.95
22	W10739673		Foot Assembly, Leveling   (Replaces: W10397767)				$ 12.90
23	W11486091		Panel Rear   (Replaces: W10250884)			Immediately	$ 294.95
24	W10432012		Hinge, Top   (Replaces: W10215102)				$ 80.51
25	WP489128		Screw   (Replaces: W10142728)				$ 10.26
26	W10676061		Cover, Harness   (Replaces: W10215139)				$ 33.09
27	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
28	WPW10339879		Cable Tie   (Replaces: W10339879)				$ 7.47
29	W11244231		Hose, Outer Drain Assembly (includes Items 28 & 30)   (Replaces: W10221546)			Immediately	$ 28.86
30	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 75.16
31	WP8572974		Hinge, Wire (right Hand)   (Replaces: 8572974)			Immediately	$ 27.45
31	WP8563965		Hinge, Wire (left Hand)   (Replaces: 8563965)			Immediately	$ 27.82
32	W11404293		Screw   (Replaces: W10339706)			Immediately	$ 13.27
33	W10492808		Badge, Maytag   (Replaces: W10323735)				$ 53.84
