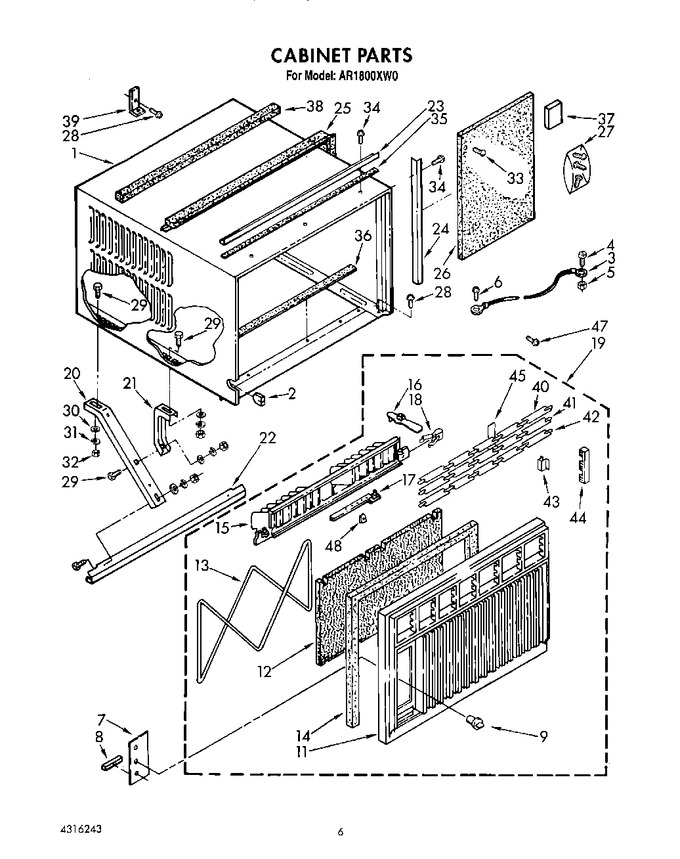

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Unit, Lit/optional
03 - Air Flow And Control
04 - Cabinet
05 - Installation Parts
06 - Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1157893 | Cabinet Also Oder: |
|
- | |||||
| 1 | 1157053 | Insulation (3) |
|
- | |||||
| 2 | 647849 | Grommet, Cable |
|
- | |||||
| 3 | 857022 | Wire, Ground |
|
- | |||||
| 4 | 488853 | Screw, 8-32 X 3/8 (machine) |
|
- | |||||
| 5 | WP486255 | Nut, 8-32 (Replaces: 486529) |
|
$ 5.82 | |||||
| 6 | 488854 | Screw, 8-32 X 3/8 (standard) |
|
- | |||||
| 7 | 953006 | Plate, Escutcheon |
|
- | |||||
| 8 | 469175 | Spacer, Plate (3) |
|
- | |||||
| 9 | 953054 | Knob, Control (3) |
|
- | |||||
| 11 | 953018 | Front, Cabinet |
|
- | |||||
| 12 | 649958 | Filter, Air |
|
- | |||||
| 13 | 476707 | Retainer, Filter |
|
- | |||||
| 14 | 649726 | Seal, Front (bottom) |
|
- | |||||
| 14 | 649725 | Seal, Front (top & Sides) |
|
- | |||||
| 15 | 953064 | Louver, Vertical |
|
- | |||||
| 16 | 953062 | Handle, Louver |
|
- | |||||
| 17 | 953063 | Link, Louver |
|
- | |||||
| 18 | 641484 | Spring, Louver |
|
$ 150.14 | |||||
| 19 | 953025 | Front, Assembly |
|
- | |||||
| 20 | 649945 | Support, Cabinet (2) |
|
- | |||||
| 21 | 649946 | Retainer, Support (2) |
|
- | |||||
| 22 | 649947 | Bracket, Support |
|
- | |||||
| 23 | 644271 | Angle, Top |
|
- | |||||
| 24 | 644272 | Angle, Side (2) |
|
- | |||||
| 25 | 644288 | Gasket, Sash |
|
- | |||||
| 26 | 644303 | Board, Filler |
|
- | |||||
| 27 | 993848 | Bag, Accessory |
|
- | |||||
| 28 | 487371 | Screw, No.10 Wood X 3/4`` |
|
- | |||||
| 29 | 488750 | Bolt, 1/4-20 X 3/4 (6) |
|
- | |||||
| 30 | 488808 | Washer (6) |
|
- | |||||
| 31 | 486009 | Washer, Lock (6) |
|
- | |||||
| 32 | 486035 | Nut, Hex 1/4-20 (6) |
|
- | |||||
| 33 | WP965173 | Screw, No.8 S.m. X 3/8`` (Replaces: 488017) |
|
Immediately | $ 10.68 | ||||
| 34 | WP308685 | Screw, No.10 S.m. X 1/2`` (Replaces: 488720) |
|
Immediately | $ 7.08 | ||||
| 35 | 855265 | Seal, Strip |
|
- | |||||
| 36 | 852220 | Seal, Cabinet Bottom |
|
- | |||||
| 37 | 995274 | Block, Spacer (4) |
|
- | |||||
| 38 | 469877 | Seal, Meeting |
|
- | |||||
| 39 | 644228 | Bracket, Window Lock |
|
- | |||||
| 40 | 953061 | Louver, Horizontal (4) |
|
- | |||||
| 41 | 953060 | Louver, Notched |
|
- | |||||
| 42 | 953059 | Louver, Handle |
|
- | |||||
| 43 | 855999 | Clip, Louver (4) |
|
- | |||||
| 44 | 00649955 | Rack, Louver (2) (Replaces: 649955) |
|
$ 488.32 | |||||
| 45 | 855998 | Retainer (4) |
|
- | |||||
| 47 | 1157141 | Screw, Front (2) |
|
- | |||||
| 48 | 1157140 | Clip, Front (2) |
|
- |
