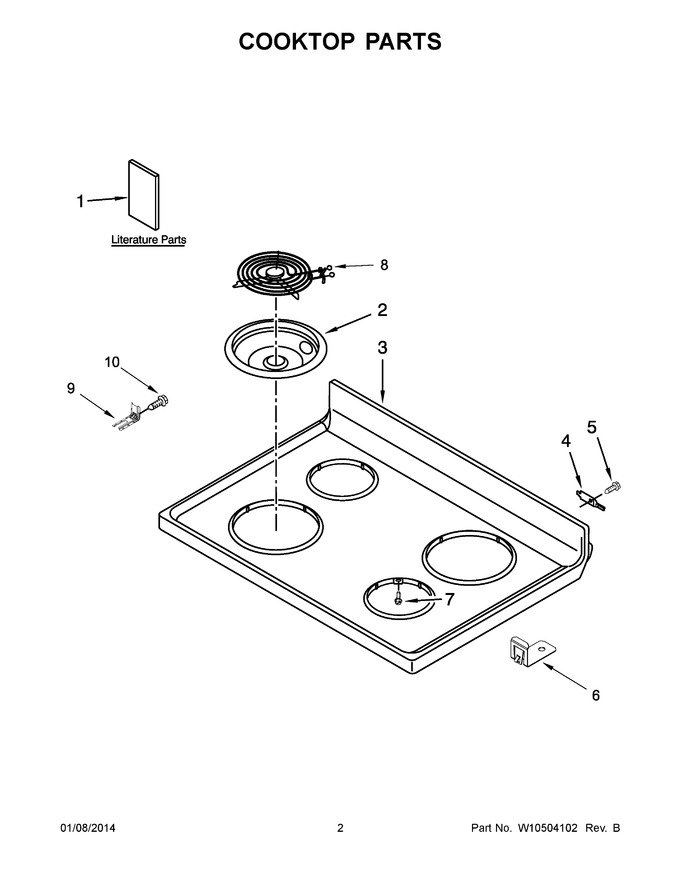

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer And Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10394782 | Instructions, Installation (english) |
|
- | |||||
| 1 | W10464420 | Instructions, Installation (arabic) |
|
- | |||||
| 1 | W10394783 | Tech Sheet (english) |
|
- | |||||
| 1 | W10464421 | Tech Sheet (arabic) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 2 | WPW10196405 | Bowl, Drip (8``) (left Ront And Right Rear) (Replaces: W10196405) |
|
Immediately | $ 15.56 | ||||
| 2 | WPW10196406 | Bowl, Drip (6``) (right Front And Left Rear) (Replaces: W10196406) |
|
Immediately | $ 12.05 | ||||
| 3 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 377.38 | |||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.86 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 6 | W10626011 | Clip, Cooktop |
|
- | |||||
| 7 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| 8 | W11168414 | Elemet, Surface (6``) (right Front And Left Rear) (Replaces: W10259870) |
|
Immediately | $ 139.04 | ||||
| 8 | W11161939 | Element, Surface (8``) (left Front And Right Rear) (Replaces: W10259867) |
|
Immediately | $ 151.77 | ||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 10 | WP7101P485-60 | Screw, Anti Tip (Replaces: 7101P485-60) |
|
$ 27.65 |
