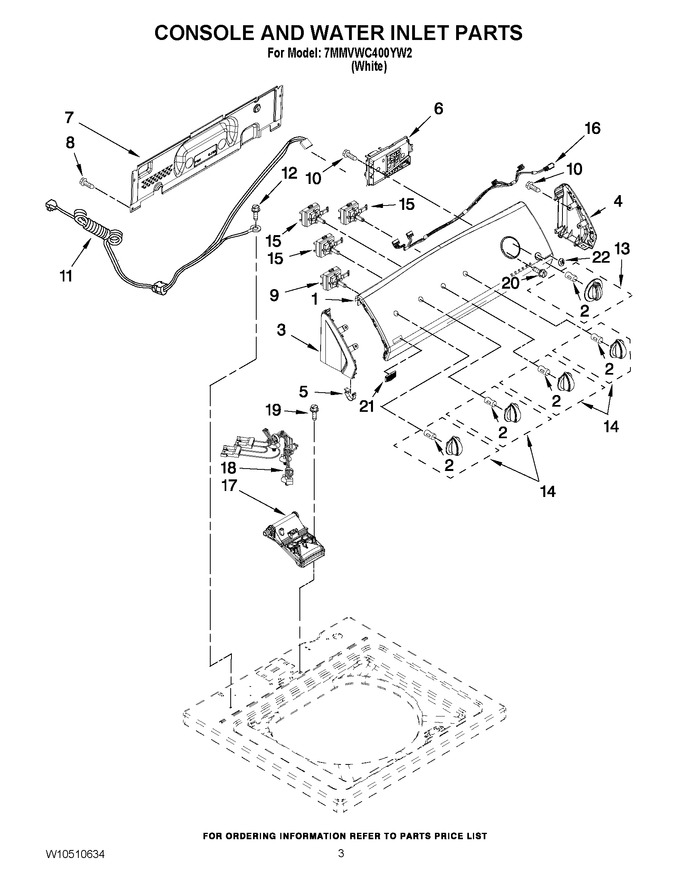

01 - Top And Cabinet Parts


02 - Console And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10355023		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 8.20
3	WPW10251358		Cap, End (l.h.) (includes Item 5)   (Replaces: W10251358)				$ 51.42
4	WPW10251355		Cap, End (r.h.) (includes Item 5)   (Replaces: W10251355)				$ 51.39
5	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.59
6	W10445393		Control Unit Assembly, Machine & Motor		Appelez-nous	-
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 360.43
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10285512		Switch, Rotary Encoder   (Replaces: W10285512)			Immediately	$ 190.47
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	WPW10525194		Cord, Power   (Replaces: W10276649)				$ 163.41
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	WPW10327522		Knob, Timer   (Replaces: W10327522)				$ 50.97
14	WPW10327523		Knob, Control   (Replaces: W10327523)				$ 55.13
15	WPW10285511		Switch, Rotary Encoder   (Replaces: W10285511)			Immediately	$ 182.10
16	WPW10291176		Harness, Upper   (Replaces: W10291176)				$ 173.29
17	WPW10683653		Inlet Assembly, Water   (Replaces: W10472844)				$ 216.49
18	W10876654		Harness, Valve   (Replaces: W10423127)				$ 194.92
19	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
20	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
21	W10199708		Badge				$ 53.28
22	WPW10251309		Push Button, Start   (Replaces: W10251309)			Immediately	$ 76.00
