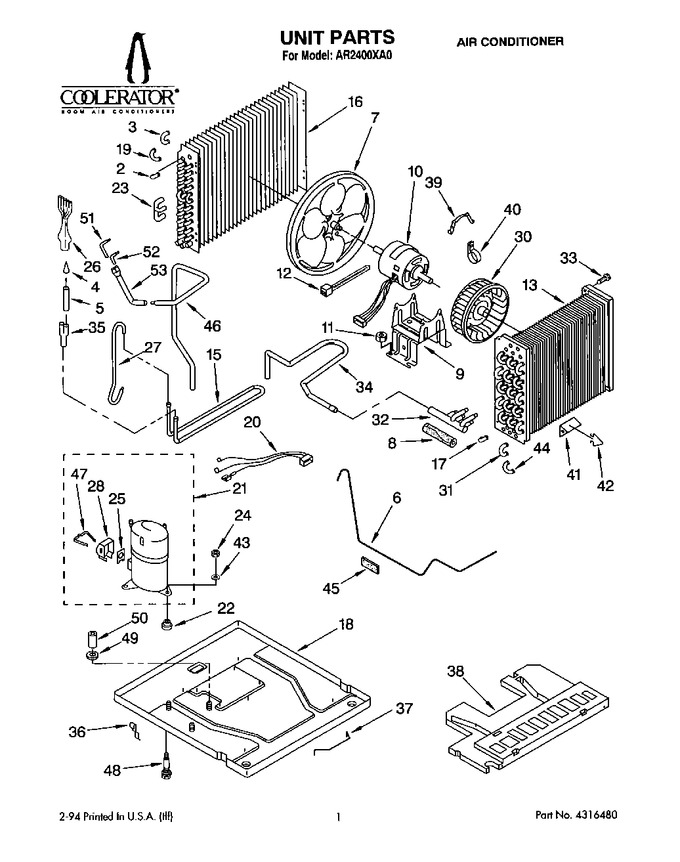

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 708532 | Bend, Return Condenser (30) |
|
- | |||||
| 3 | 708531 | Bend, Return Condenser (2) |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 1163768 | Tube, Outlet (includes Illus. 4) |
|
- | |||||
| 6 | 1165955 | Tube, Restrictor (5) |
|
- | |||||
| 7 | 1158665 | Blade, Fan (condenser) |
|
- | |||||
| 8 | 1161240 | Seal, Suction Tube |
|
- | |||||
| 9 | 1160672 | Bracket, Fan Motor |
|
- | |||||
| 10 | 1164160 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut (Replaces: 1160408) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 602851) |
|
$ 7.47 | |||||
| 13 | 1164507 | Evaporator |
|
- | |||||
| 15 | 1161247 | Wet, Loop |
|
- | |||||
| 16 | 1160100 | Condenser |
|
- | |||||
| 17 | 854624 | Bend, Return Evaporator (10) |
|
- | |||||
| 18 | 1162105 | Base |
|
- | |||||
| 19 | 1156329 | Return Bend Condenser (1) |
|
- | |||||
| 20 | 1164482 | Harness, Wiring |
|
- | |||||
| 21 | 1165913 | Compressor |
|
- | |||||
| 22 | 1162080 | Grommet (3) |
|
- | |||||
| 23 | 1158685 | Return Bend 3-way Condenser (1) |
|
- | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 25 | 1161082 | Gasket, Terminal Cover (production) |
|
- | |||||
| 26 | 1163760 | Distributor |
|
- | |||||
| 27 | 1161277 | Tube, Wet Loop Connect |
|
- | |||||
| 28 | 1161076 | Cover, Terminal (production) |
|
- | |||||
| 30 | 1162528 | Wheel, Blower (evaporator) |
|
- | |||||
| 31 | 855199 | Return Bend Evaporator (7) |
|
- | |||||
| 32 | 1164563 | Manifold, Suction |
|
- | |||||
| 33 | WP489069 | Screw No.8-3/8 (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 34 | 1165917 | Tube, Suction |
|
- | |||||
| 35 | 947364 | Tube, Flow Divider |
|
- | |||||
| 36 | 471088 | Clamp (2) |
|
- | |||||
| 37 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 38 | 1160656 | Pan, Drain |
|
- | |||||
| 39 | WPY015825 | Clip, Motor (2) (Replaces: 49633) |
|
$ 22.65 | |||||
| 40 | 1163775 | Clamp, Wiring |
|
- | |||||
| 41 | 484238 | Anticipator |
|
- | |||||
| 42 | 642080 | Clip, Anticipator |
|
- | |||||
| 43 | W11236646 | Washer (3) (Replaces: 1160880) |
|
Immediately | $ 13.26 | ||||
| 44 | 855644 | Bend, Return Evaporator (10) |
|
- | |||||
| 45 | 1163759 | Seal, Restrictor Tube |
|
- | |||||
| 46 | 1164476 | Tube, Discharge |
|
- | |||||
| 47 | 1161083 | Retainer, Terminal Cover |
|
- | |||||
| 48 | 1158668 | Bolt, Compressor |
|
- | |||||
| 49 | 1160654 | Spacer, Grommet |
|
- | |||||
| 50 | 1160655 | Ext. Shoulder |
|
- | |||||
| 51 | 1161217 | Tube, Feeder |
|
- | |||||
| 52 | 1161216 | Tube, Feeder |
|
- | |||||
| 53 | 1164479 | Tube, Discharge Assembly (includes 51, 52) |
|
- | |||||
| LIT1161093 | Wiring Diagram |
|
- | ||||||
| LIT1164939 | Manual, Owners |
|
- | ||||||
| LIT1165606 | Tech Sheet |
|
- |
