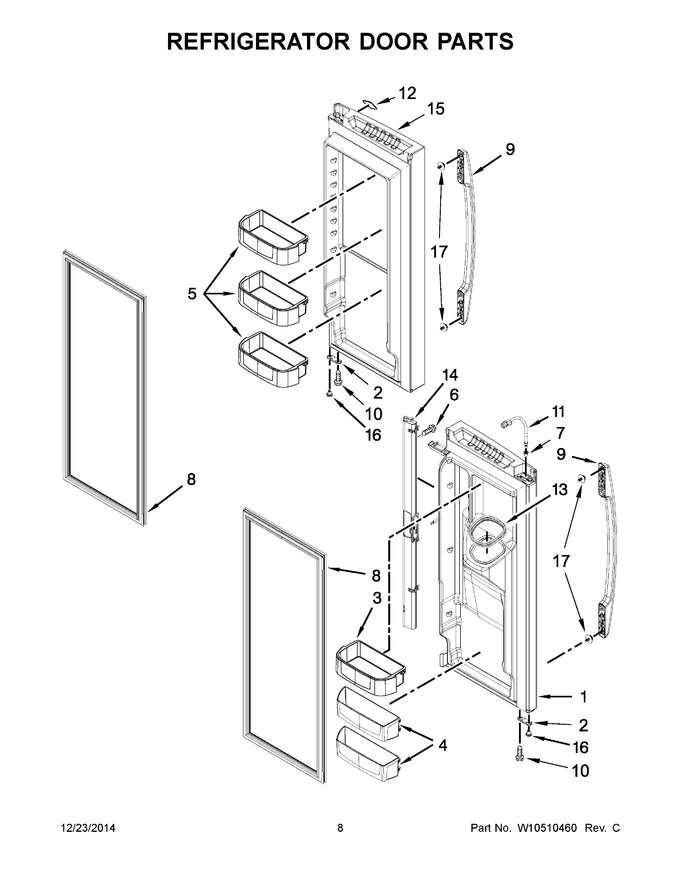

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107315SQ | Door, Left (stainless) (Replaces: 13107315S) |
|
- | |||||
| 2 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 3 | W10290553 | Bucket, Upper |
|
- | |||||
| 4 | W10297151 | Bucket, Lower |
|
- | |||||
| 5 | WP12840004 | Bucket, Gallon (Replaces: 12840004) |
|
$ 94.89 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 8 | W10830055 | Gasket, Door (grey) (Replaces: W10443238) |
|
Immediately | $ 283.65 | ||||
| 9 | W10252288A | Handle, Door (stainless) (Replaces: W10252288) |
|
$ 129.86 | |||||
| 10 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 11 | WPW10511930 | Waterline, Door (Replaces: W10511930) |
|
$ 121.94 | |||||
| 12 | WPW10170766 | Badge (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 14 | WP12722815AP | Mullion, Door (grey) (Replaces: 12722815AP) |
|
$ 338.01 | |||||
| 15 | 13107316SQ | Door, Right (stainless) (Replaces: 13107316S) |
|
$ 1,118.12 | |||||
| 16 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 17 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 |
