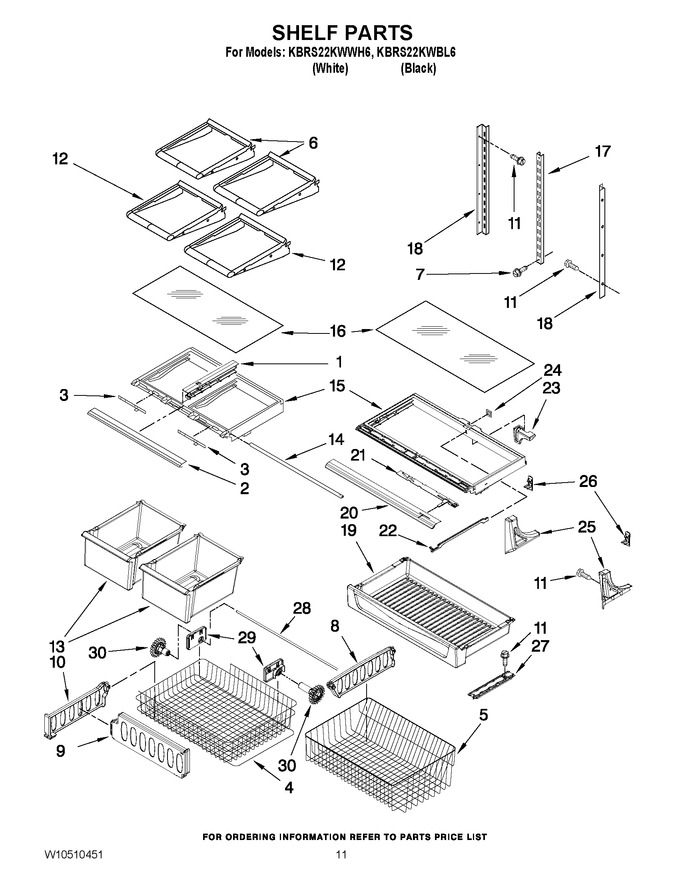

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701N) |
|
Immediately | $ 106.61 | ||||
| 2 | W10231483 | Trim, Crisper |
|
$ 105.31 | |||||
| 3 | WP67005864 | Slide, Humidity Control (2) (Replaces: 12530805SP) |
|
Immediately | $ 7.38 | ||||
| 4 | W10348238 | Basket, Freezer (upper) |
|
$ 205.32 | |||||
| 5 | WPW10503183 | Basket, Freezer (lower) (Replaces: W10150038) |
|
Immediately | $ 224.42 | ||||
| 6 | W11402521 | Shelf, Glide (Replaces: 12463310) |
|
$ 208.42 | |||||
| 7 | W10215666 | Screw |
|
$ 8.58 | |||||
| 8 | W10847995 | Divider, Lower Basket (Replaces: W10146440) |
|
$ 83.23 | |||||
| 9 | W10311695 | Divider, Upper Basket |
|
$ 27.18 | |||||
| 10 | W10241046 | Divider, Upper Basket |
|
Immediately | $ 26.27 | ||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 12 | W11402523 | Self, Stationary (Replaces: 12463509) |
|
Immediately | $ 209.21 | ||||
| 13 | WP67002633 | Pan, Crisper (2) (Replaces: 12530505N) |
|
Immediately | $ 155.96 | ||||
| 14 | WP12227303WD | Brace, Crisper (2) (Replaces: 12227303WD) |
|
$ 100.13 | |||||
| 15 | WPW10568041 | Frame, Crisper (2) (Replaces: 12530401SP) |
|
Immediately | $ 142.11 | ||||
| 16 | WP67006878 | Glass, Crisper (2) (Replaces: 12204822N) |
|
Immediately | $ 201.12 | ||||
| 17 | W10273463 | Ladder, Center |
|
$ 26.65 | |||||
| 18 | W10251969 | Ladder, Side (2) |
|
$ 28.30 | |||||
| 19 | W10328328 | Pan, Pantry |
|
$ 63.11 | |||||
| 20 | W10656985 | Trim, Pantry (Replaces: W10231333) |
|
$ 123.91 | |||||
| 21 | W10447056N | Slide, Pantry |
|
- | |||||
| 22 | 12531401N | Bar, Pantry |
|
- | |||||
| 23 | WP12531601 | Tunnel, Pantry (Replaces: 12531601) |
|
$ 9.94 | |||||
| 24 | W10368789 | Gasket, Pantry |
|
$ 24.77 | |||||
| 25 | WP67001721 | Support, Pantry (lh) (Replaces: 12531001) |
|
Immediately | $ 7.83 | ||||
| 25 | WP67001722 | Support, Pantry (rh) (Replaces: 12531002) |
|
Immediately | $ 8.04 | ||||
| 26 | WP67001716 | Ladder, Hook (Replaces: 12531802) |
|
Immediately | $ 10.03 | ||||
| 27 | WP67001719 | Track, Deli (Replaces: 12531901) |
|
Immediately | $ 8.09 | ||||
| 28 | W10802339 | Shaft-rack (Replaces: 12812905WD) |
|
$ 93.75 | |||||
| 29 | W10348259 | Mount, Gear (left) |
|
$ 80.88 | |||||
| 29 | W10348260 | Mount, Gear (right) |
|
$ 80.91 | |||||
| 30 | WPW10474716 | Gear (short-left) (Replaces: W10474716) |
|
Immediately | $ 29.18 | ||||
| 30 | WPW10474715 | Gear (long Right) (Replaces: W10474715) |
|
Immediately | $ 29.48 |
