Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10490744 Energy Guide Appelez-nous -
1 W10350140 Tech Sheet, English Appelez-nous -
1 W10401504 Instructions, Installation Appelez-nous -
1 W10350141 Tech Sheet, French Appelez-nous -
1 W10350359 Use & Care Guide (english/french) Appelez-nous -
1 W10350360 Use & Care Guide (spanish) Appelez-nous -
2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 128.02

2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 128.15

3 W10850371 Vapor, Barrier Assembly Door   (Replaces: W10321449) In-Stock Immediately $ 29.59

4 WPW10323568 Panel Front (includes 8, 15 & 16) (white)   (Replaces: W10323568) Special Order $ 353.93

4 W10323570 Panel Front (includes 8, 15 & 16) (black) Special Order $ 150.41

4 W10323562 Panel Front (includes 8, 15 & 16) (stainless) Special Order $ 174.54

5 W10827631 Access Panel (black)   (Replaces: W10369024) In-Stock Immediately $ 176.08

5 W10827632 Access Panel (white)   (Replaces: W10369026) In-Stock Immediately $ 147.33

6 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.56

7 WPW10503549 Fastener (white)   (Replaces: W10331793) In-Stock Immediately $ 6.99

7 WPW10503548 Fastener (black)   (Replaces: W10331789) In-Stock Immediately $ 27.35

8 WPW10393264 Name Plate   (Replaces: W10393264) Special Order $ 60.97

9 WP3400071 Screw   (Replaces: 3400071) Special Order $ 7.43

10 WPW10350242 Bracket, Panel Control   (Replaces: W10350242) Special Order $ 79.49

11 W10873050 Handle Assembly (includes Item 14) (black)   (Replaces: W10330967) Special Order $ 159.51

11 W10873052 Handle Assembly (includes Item 14) (white)   (Replaces: W10330968) Special Order $ 154.11

11 W10330970 Handle Assembly (includes Item 14) (stainless) Appelez-nous -
12 W11126003 Insulation, Door   (Replaces: W10315897) In-Stock Immediately $ 58.73

13 W10831329 Insulation, Access Panel   (Replaces: W10073540) In-Stock Immediately $ 38.97

14 WP8534008 Screw   (Replaces: 8534008) Special Order $ 8.43

15 W11157086 Mounting Stud   (Replaces: W10195726) In-Stock Immediately $ 7.98

16 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 6.80


    View Diagram in Separate Window     Print Icon   Print Part List

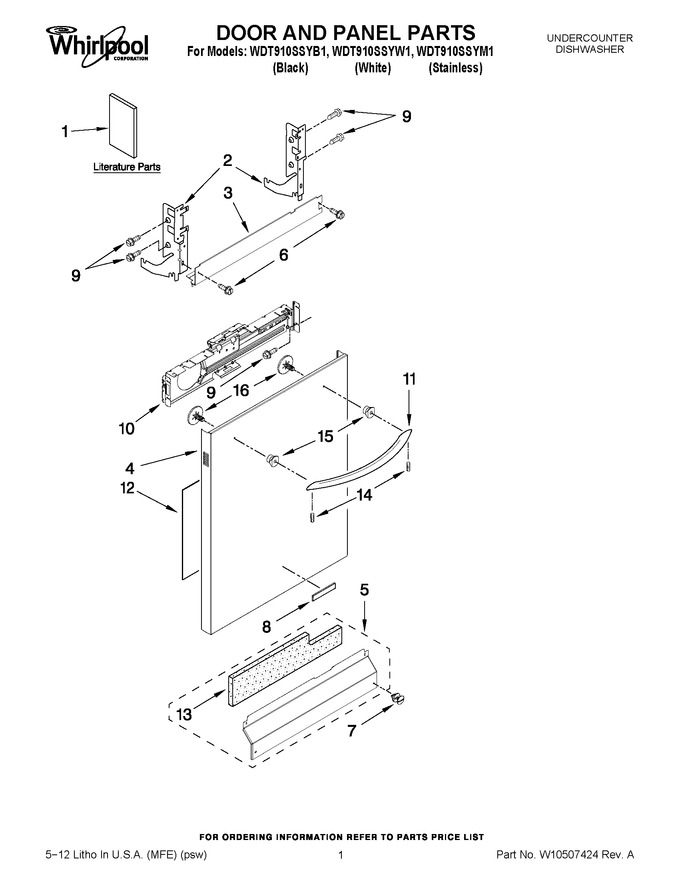

Diagram for WDT910SSYB1
