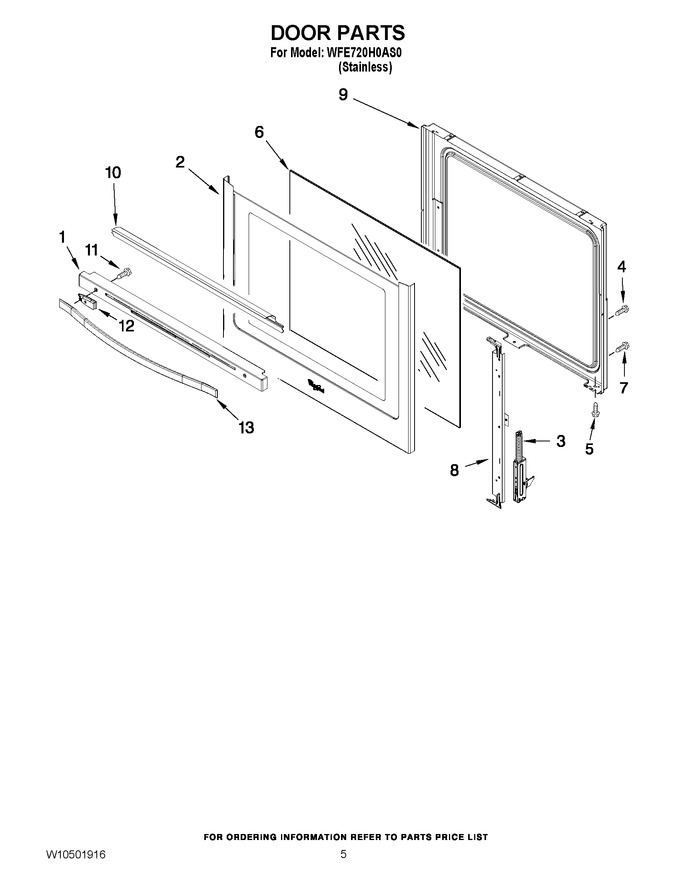

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10335333 | Trim-vent |
|
$ 157.47 | |||||
| 2 | W10289144 | Assembly, Outer Door Glass (includes Badge) |
|
$ 237.78 | |||||
| 3 | WPW10440013 | Hinge-door (Replaces: W10388635) |
|
Immediately | $ 57.42 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 5 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 267.26 | |||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 8 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 120.38 | |||||
| 9 | WPW10297318 | Lining, Door (Replaces: W10297318) |
|
Immediately | $ 298.36 | ||||
| 10 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 213.34 | ||||
| 11 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 7.38 | ||||
| 12 | WPW10254688 | Standoff, Handle (Replaces: W10254688) |
|
$ 69.73 | |||||
| 13 | WPW10618239 | Handle, Door (Replaces: W10254687) |
|
Immediately | $ 171.80 |
