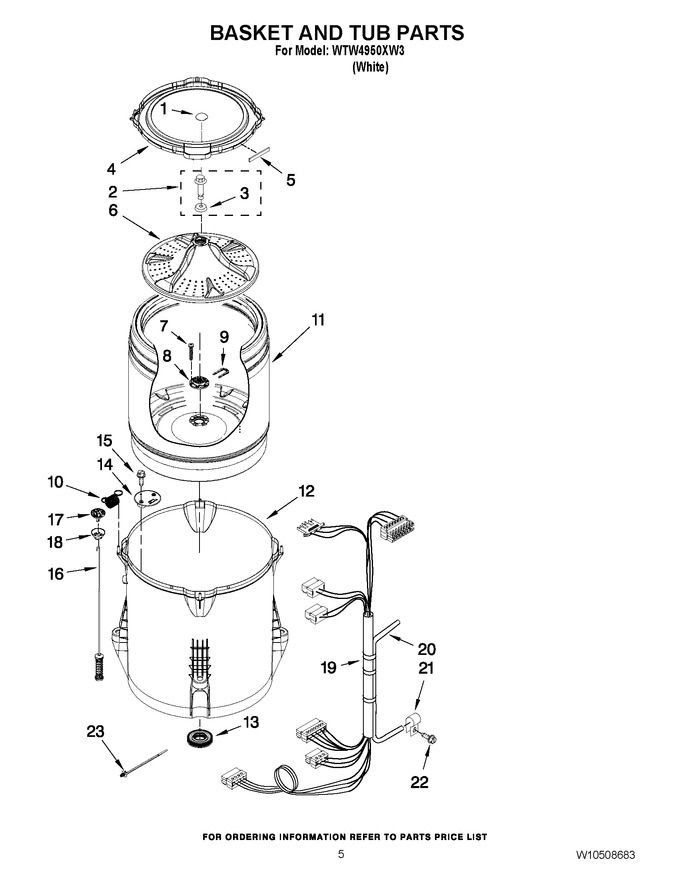

03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10305259		Cap, Impeller   (Replaces: W10305259)				$ 21.27
2	W10772621		Screw & Washer Assembly   (Replaces: W10003790)			Immediately	$ 4.77
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 9.98
4	W10215146		Tub Ring (includes Item 5)				$ 84.89
5	W10205824		Absorber, Impact				$ 72.58
6	WPW10215115		Impeller (washplate)   (Replaces: W10215118)				$ 281.99
7	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 6.80
8	W10528947		Hub - Driven, Basket (includes Item 7)   (Replaces: W10396887)			Immediately	$ 40.16
9	W11385424		Retainer   (Replaces: W10402178)			Immediately	$ 11.67
10	W10400895		Spring, Tub Centering   (Replaces: W10348658)			Immediately	$ 9.34
11	WPW10521297		Basket Assembly (includes Items 7 & 8)   (Replaces: W10469848)				$ 461.59
12	W10324648		Tub (includes Item 13)   (Replaces: W10238301)				$ 325.67
13	W10324647		Seal, Tub   (Replaces: W10006371)			Immediately	$ 84.15
14	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 58.73
15	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.43
16	W10780051		Damper Assembly, Tub Suspension (set Of 4-includes Items 17 & 18)   (Replaces: W10257086)			Immediately	$ 224.07
17	W10405423		Ball, Suspension (set Of 4 -includes Item 18)		Appelez-nous	-
18	W10256551		Bushing, Suspension (set Of 4 -includes Item 17)		Appelez-nous	-
19	WPW10383573		Harness, Lower (includes Item 20)   (Replaces: W10383573)				$ 197.06
20	WP353244		Hose, Pressure Switch   (Replaces: 8572540)			Immediately	$ 78.00
21	W10005430		Clamp, Pressure Hose Retainer			Immediately	$ 8.58
22	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 7.92
23	WPW10298887		Cable Tie   (Replaces: W10298887)				$ 7.18
