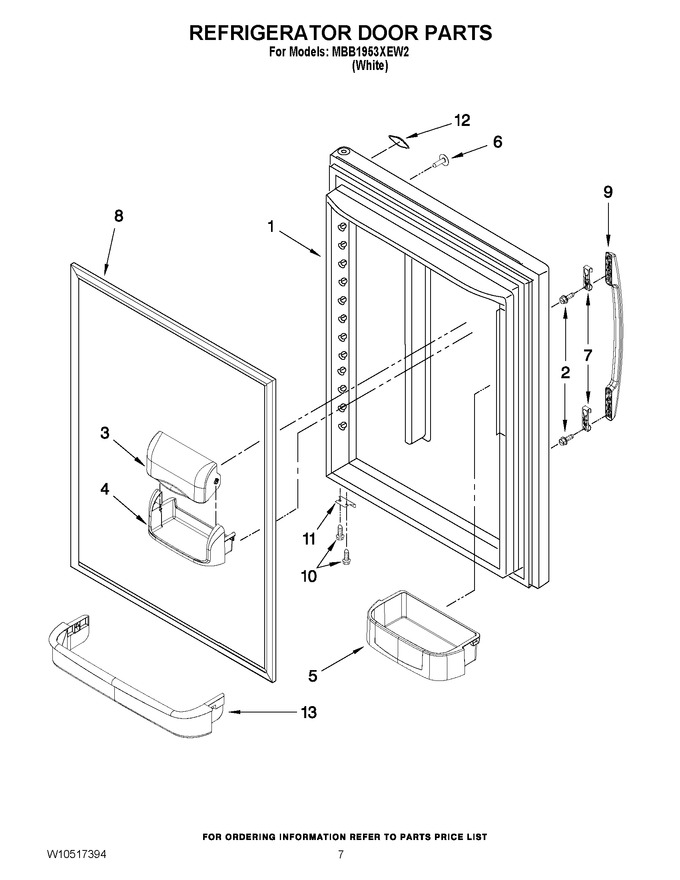

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109403W | Door, Refrigerator (white) |
|
- | |||||
| 2 | WPW10288153 | Screw, Handle (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 74.40 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 79.21 | ||||
| 5 | 67004040 | Bucket, Medium (2) (Replaces: 12801902V) |
|
$ 86.39 | |||||
| 5 | WP67004041 | Bucket, Small (2) (Replaces: 12801901V) |
|
$ 80.11 | |||||
| 6 | WP67001130 | Plug, Button (white) (Replaces: 12246607) |
|
Immediately | $ 7.39 | ||||
| 7 | WP2255411 | Clip, Handle (Replaces: 2255411) |
|
$ 32.90 | |||||
| 8 | WPW10443309 | Gasket, Door (white) (Replaces: W10443309) |
|
Immediately | $ 328.72 | ||||
| 9 | WPW10252284A | Handle, Door (white) (Replaces: W10252284N) |
|
$ 68.65 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 11 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 62.36 | |||||
| 12 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 63.45 | ||||
| 13 | 67001139 | Retainer, Ref Door (Replaces: 12557904) |
|
Immediately | $ 94.31 |
