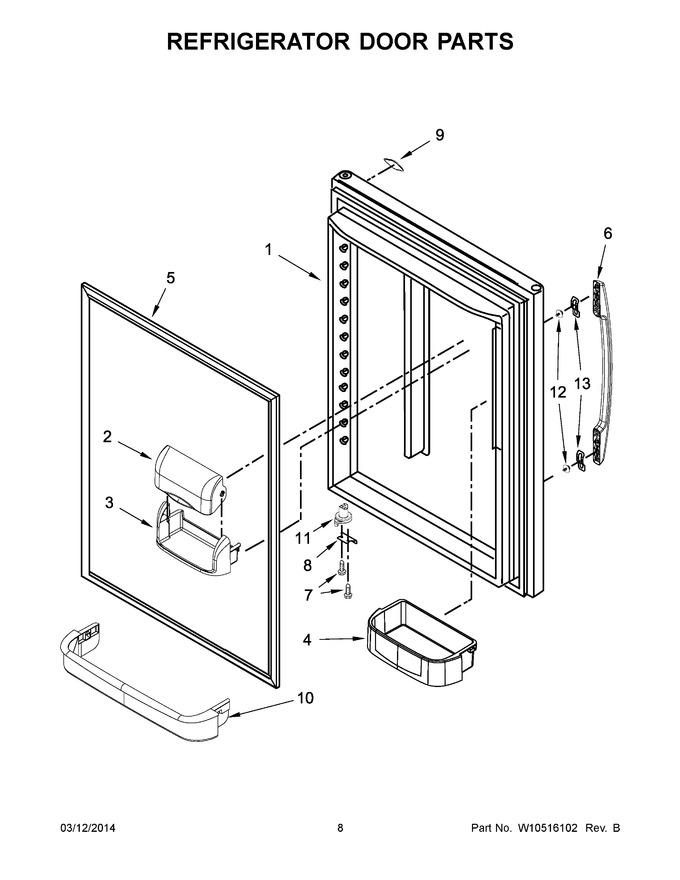

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107545SQ | Door, Refrigerator (stainless (left Hand)) (Replaces: 13107545S) |
|
$ 1,044.96 | |||||
| 1 | 13107548S | Door, Refrigerator (stainless (right Hand)) |
|
- | |||||
| 2 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 74.40 | ||||
| 3 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 79.21 | ||||
| 4 | 67004040 | Bucket (medium) (Replaces: 12801902V) |
|
$ 86.39 | |||||
| 5 | WPW10436248 | Gasket, Door (black) (Replaces: W10436248) |
|
$ 301.64 | |||||
| 6 | W10252288A | Handle, Door (stainless) (Replaces: W10252288N) |
|
$ 116.87 | |||||
| 7 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 8 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 13.28 | ||||
| 9 | WPW10170766 | Badge (Replaces: W10170766) |
|
Immediately | $ 63.45 | ||||
| 10 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 101.61 | ||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
Immediately | $ 81.29 | ||||
| 12 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 13 | WP2255411 | Clip, Handle Mount (Replaces: 2255411) |
|
$ 32.90 |
