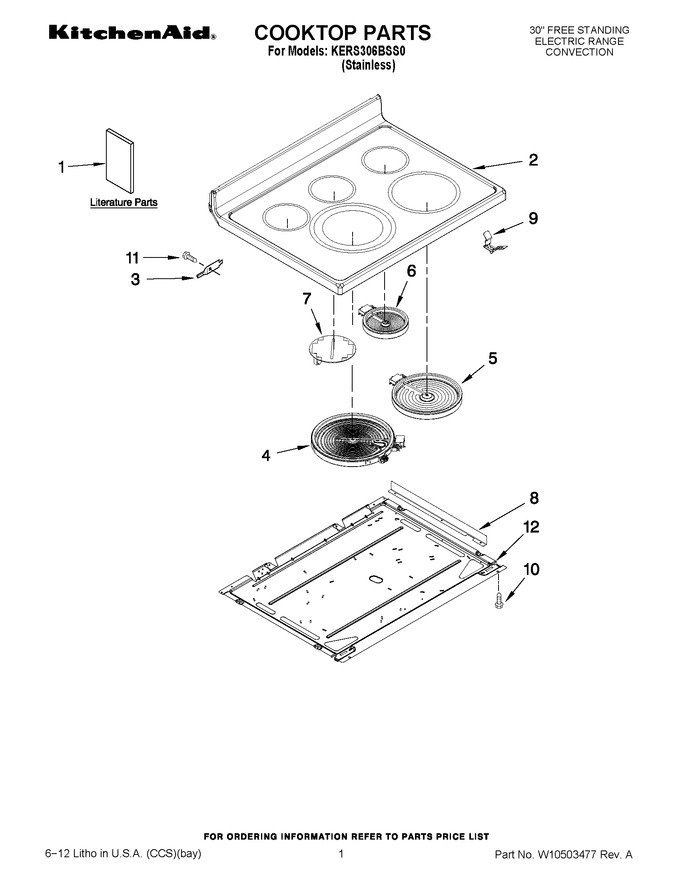

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403811 | Installation Instructions |
|
- | |||||
| 1 | W10400064 | Guide, Quick Start |
|
- | |||||
| 1 | W10509191 | Sheet, Tech |
|
- | |||||
| 1 | 9762761 | Brochure, Safe Tip |
|
- | |||||
| 1 | W10392942 | Use & Care Guide |
|
- | |||||
| 2 | W10524416 | Cooktop (Replaces: W10443098) |
|
$ 587.25 | |||||
| 3 | WP3195060 | Pin, Hinge (Replaces: 3195060) |
|
Immediately | $ 11.86 | ||||
| 4 | WPW10298145 | Element (lf), 3000/2200/1100w (Replaces: W10298145) |
|
Immediately | $ 319.80 | ||||
| 5 | WPW10251108 | Element (rf) 3200w (Replaces: W10251108) |
|
Immediately | $ 307.76 | ||||
| 6 | W11171119 | Element (rr,lr), 1200w (Replaces: 8273994) |
|
Immediately | $ 213.20 | ||||
| 7 | W11047668 | Element (cr), Warm Zone (Replaces: W10388247) |
|
$ 119.66 | |||||
| 8 | W10348913 | Bracket, L-bridge |
|
- | |||||
| 9 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.82 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 11 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 12 | W11728329 | Pan, Radiant (Replaces: W10106409) |
|
Immediately | $ 129.14 |
