Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Cabinet And Breaker Trim Parts
02 - Cabinet And Breaker Trim Parts

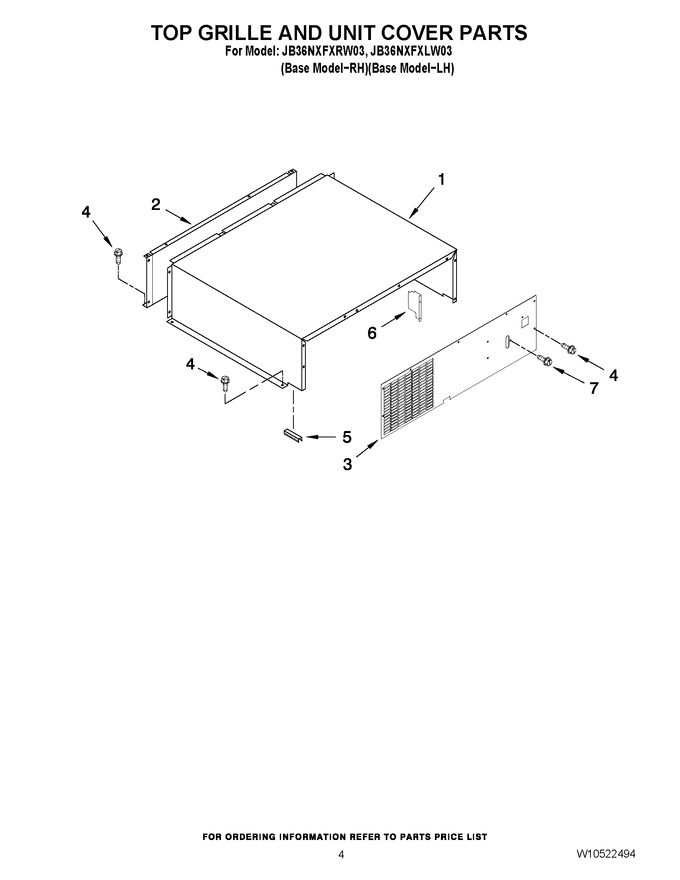

Diagram for 03 - Top Grille And Unit Cover Parts
03 - Top Grille And Unit Cover Parts

Diagram for 04 - Refrigerator Liner Parts
04 - Refrigerator Liner Parts

Diagram for 05 - Freezer Liner Parts
05 - Freezer Liner Parts

Diagram for 06 - Shelf Parts
06 - Shelf Parts

Diagram for 07 - Refrigerator Door Parts
07 - Refrigerator Door Parts

Diagram for 08 - Freezer Door And Basket Parts
08 - Freezer Door And Basket Parts

Diagram for 09 - Upper Unit Parts
09 - Upper Unit Parts

Diagram for 10 - Lower Unit And Tube Parts
10 - Lower Unit And Tube Parts

Diagram for 11 - Icemaker Parts
11 - Icemaker Parts


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10188580 Cover, Unit Special Order $ 274.17

2 2256466 Back Panel Special Order $ 294.50

3 W10272180 Front, Unit Cover Special Order $ 142.97

4 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 10.68

5 2215910 Grommet Special Order $ 84.89

6 W10251186 Air Divider Top Grille Appelez-nous -
7 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 7.56


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for JB36NXFXRW03
