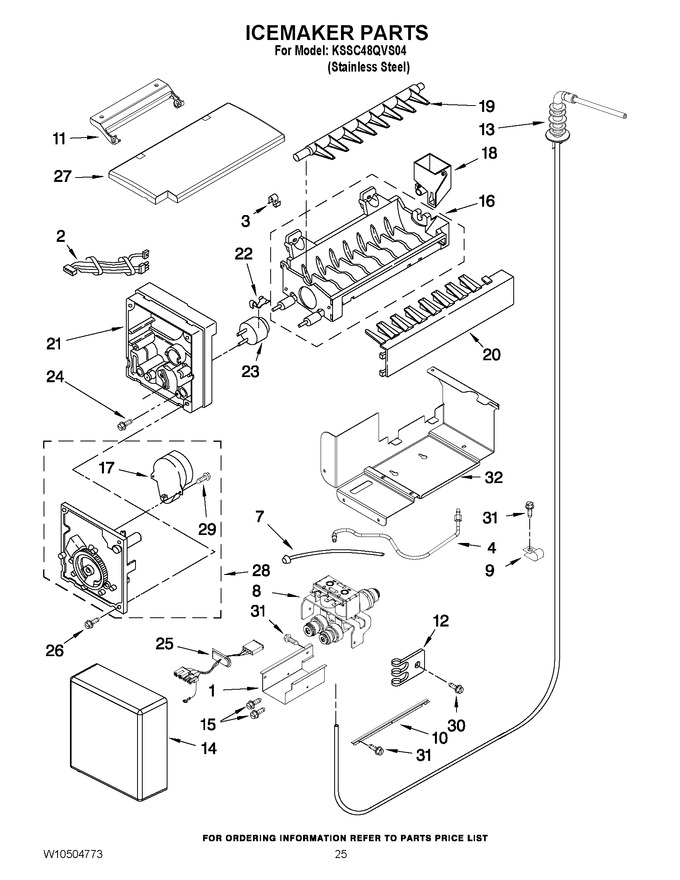

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2320601 | Shield, Valve |
|
$ 108.14 | |||||
| 2 | 2310191 | Wire Assembly, Icemaker |
|
$ 138.83 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 4 | W11565275 | Tube, Filter Inlet (Replaces: W10296807) |
|
$ 61.10 | |||||
| 7 | W11533506 | Tube, Filter Outlet (Replaces: W10437853) |
|
$ 29.84 | |||||
| 8 | WPW10159842 | Valve, Solenoid (Replaces: W10159842) |
|
Immediately | $ 302.40 | ||||
| 9 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.39 | |||||
| 10 | 2320559 | Support, Valve |
|
$ 79.91 | |||||
| 11 | WP2198641 | Bracket, Icemaker Cover (Replaces: 2198641) |
|
$ 6.80 | |||||
| 12 | WP488366 | Clamp, Nylon Valve (Replaces: 2208136) |
|
$ 10.73 | |||||
| 13 | W11212166 | Fitting, Water (Replaces: W10357286) |
|
Immediately | $ 36.84 | ||||
| 14 | WPW10289690 | Cover (Replaces: W10289690) |
|
$ 7.94 | |||||
| 15 | WPW10141604 | Screw (Replaces: W10141604) |
|
$ 7.97 | |||||
| 16 | WPW10190929 | Mold & Heater(also Order 542638silicone Grease) (Replaces: W10122527) |
|
$ 220.67 | |||||
| 17 | N/P | Motor, (not Serviceable Order Item 28) |
|
- | |||||
| 18 | WPW10272168 | Cup-water Fill (Replaces: W10272168) |
|
$ 68.83 | |||||
| 19 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 20 | WPW10272161 | Ice Stripper (Replaces: W10272161) |
|
$ 65.54 | |||||
| 21 | WP2195914 | Support (Replaces: 2194712) |
|
$ 98.82 | |||||
| 22 | WP2315522 | Retainer Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 23 | WP627985 | Thermostat (also Order 42639 Cement Alumilastic) (Replaces: W10290336) |
|
$ 103.18 | |||||
| 24 | 8533917 | Screw |
|
$ 12.64 | |||||
| 25 | W10279391 | Wire Assembly |
|
$ 120.77 | |||||
| 26 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 27 | WPW10504754 | Cover, Icemaker (Replaces: 2317041) |
|
$ 85.68 | |||||
| 28 | 8201515 | Module Assembly (includes Items 17 & 29) (Replaces: W10223929) |
|
Immediately | $ 151.00 | ||||
| 29 | 489136 | Screw |
|
$ 9.72 | |||||
| 30 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.54 | ||||
| 31 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 32 | 2252228 | Bracket, Icemaker Mounting |
|
- | |||||
| 100 | WPW10277448 | Complete Icemaker Assembly (Replaces: 2320636) |
|
Immediately | $ 263.46 | ||||
| NI | W10355010 | Affresh Kitchen Appliance Cleaner |
|
- | |||||
| NI | W10355016 | Affresh Stainless Steel Cleaner |
|
- | |||||
| NI | W10355049 | Affresh Stainless Steel Wipes |
|
$ 7.91 | |||||
| NI | REFDEODOR | Deodorizer Pack |
|
- | |||||
| NI | W10129081 | Handle Kit For Previous Architect Series (stainless) |
|
$ 229.27 |
