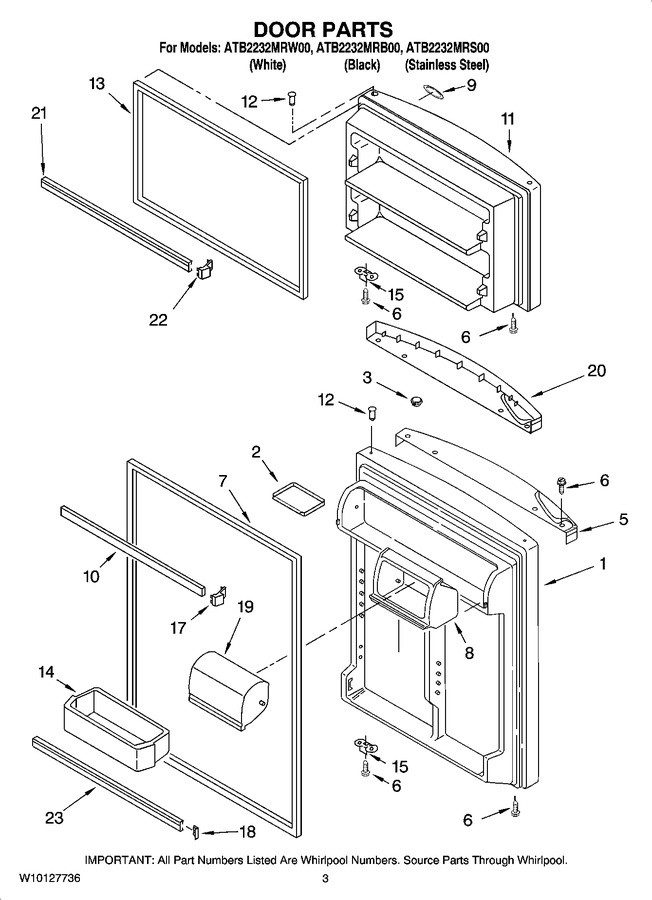

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2204867 | Refrigerator Door (includes Illus. 7 & 12) (black) |
|
- | |||||
| 1 | 2218278 | Refrigerator Door (includes Illus. 7 & 12) (stainless Steel) |
|
- | |||||
| 1 | 2202519 | Refrigerator Door (includes Illus. 7 & 12) (white) |
|
- | |||||
| 2 | 2195388 | Tray, Door |
|
- | |||||
| 3 | 2204837 | Hole-plug Endcap (white) |
|
$ 27.77 | |||||
| 3 | 2204840 | Hole-plug Endcap (black) |
|
$ 33.23 | |||||
| 5 | 2300571W | Endcap, Handle (refrigerator) (white) |
|
$ 15.49 | |||||
| 5 | 2300571B | Endcap, Handle (refrigerator) (black) |
|
$ 15.63 | |||||
| 6 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 7 | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 297.86 | |||||
| 7 | 2159061 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202875) |
|
Immediately | $ 165.30 | ||||
| 8 | 2210566 | Housing Compartment |
|
$ 65.25 | |||||
| 9 | Y12528501 | Nameplate (Replaces: 12528501) |
|
Immediately | $ 56.47 | ||||
| 10 | 2159306 | Trim, Door Shelf |
|
$ 53.20 | |||||
| 11 | 2204856 | Freezer Door (includes Illus 12 & 13) (black) |
|
- | |||||
| 11 | 2202520 | Freezer Door (includes Illus 12 & 13) (white) |
|
- | |||||
| 11 | 2212419 | Freezer Door (includes Illus. 12 & 13) (stainless Steel) |
|
- | |||||
| 12 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 13 | 2177310 | Door Gasket,magnetic (black) (Replaces: 2214969) |
|
$ 301.78 | |||||
| 13 | 2159060 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214967) |
|
$ 302.41 | |||||
| 14 | WP2204813 | Bin, Door Shelf (Replaces: 2204813) |
|
Immediately | $ 73.08 | ||||
| 15 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 17 | 2177340 | Endcap, Trim (2) |
|
$ 5.84 | |||||
| 18 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 11.51 | ||||
| 19 | 2218109 | Compartment Door |
|
$ 33.66 | |||||
| 20 | 2300575W | Endcap, Handle (freezer) (white) |
|
$ 14.41 | |||||
| 20 | 2300575B | Endcap, Handle (freezer) (black) |
|
$ 17.71 | |||||
| 21 | 2195947 | Trim-door (2) |
|
$ 50.94 | |||||
| 22 | WP2195916K | Endcap, Trim (4) (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 23 | WPW10421486 | Trim, Door (Replaces: 2195948) |
|
$ 103.27 |
