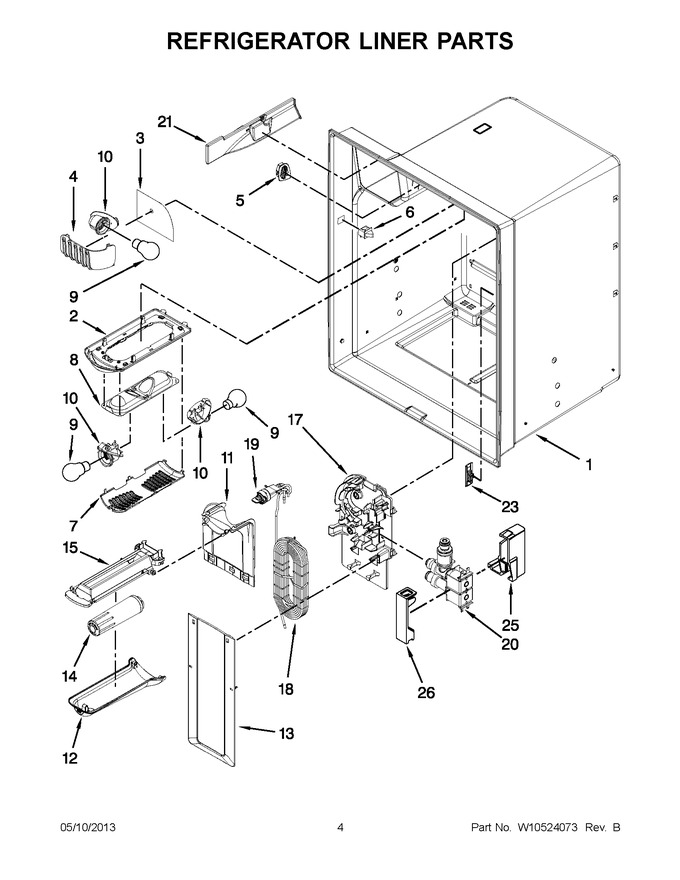

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10464777 | Module, Light |
|
$ 37.26 | |||||
| 3 | 12691605 | Foil, Light |
|
- | |||||
| 4 | 12921801 | Cover, Light |
|
$ 20.38 | |||||
| 5 | W10555984 | Assembly, Air Grille |
|
Immediately | $ 37.88 | ||||
| 6 | W11396033 | Switch, Rocker (Replaces: 12466103) |
|
Immediately | $ 33.57 | ||||
| 7 | 12905902 | Cover, Light |
|
- | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 105.97 | ||||
| 9 | W11679940 | Bulb, Light (Replaces: W10311505N) |
|
Immediately | $ 10.17 | ||||
| 10 | W11447232 | Socket, Light (Replaces: 12570701) |
|
Immediately | $ 12.48 | ||||
| 11 | 12960101 | Cover, Upper Water Tank |
|
$ 120.61 | |||||
| 12 | WP67006331 | Cover, Filter (Replaces: 12960301) |
|
Immediately | $ 106.53 | ||||
| 13 | 67006329 | Cover, Lower Water Tank (Replaces: 12960001) |
|
$ 179.06 | |||||
| 14 | EDR4RXD1B | Filter, Water (Replaces: W10336197) |
|
Immediately | $ 49.99 | ||||
| 15 | 67006325 | Bracket, Filter Base (Replaces: 12955901) |
|
Immediately | $ 94.85 | ||||
| 17 | WPW10334463 | Bracket, Water Tank & Valve (Replaces: W10334463) |
|
$ 56.42 | |||||
| 18 | W11346622 | Water Tank & Head Assembly (Replaces: W10463663) |
|
Immediately | $ 159.98 | ||||
| 19 | W11395888 | Cartridge, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 45.65 | ||||
| 20 | WPW10312696 | Valve, Water Inlet (Replaces: W10312696) |
|
Immediately | $ 183.74 | ||||
| 21 | 13033601 | Cover, Ice Box Harness |
|
$ 66.19 | |||||
| 23 | 12987301 | Cover, Chiller Vent |
|
$ 12.36 | |||||
| 25 | W10118193 | Enclosure, Water Valve Connector |
|
$ 79.92 | |||||
| 26 | W10118194 | Lid, Enclosure |
|
- |
