SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Unit Parts

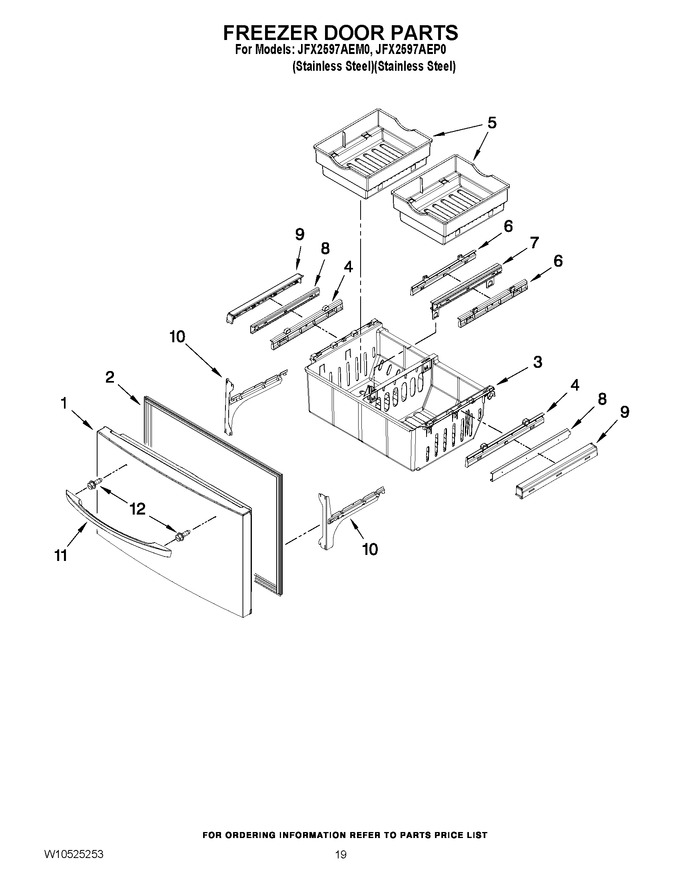

10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107111SQ		Freezer Door (mono Stainless)   (Replaces: 13107111S)				$ 994.15
2	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10443322)				$ 291.24
3	12924801SP		Bin, Lower		Appelez-nous	-
4	W10166742		Adapter, Bin (outer)   (Replaces: 12925403SP)				$ 88.31
5	WP12924903		Bin, Upper   (Replaces: 12924903)				$ 119.07
6	12925404SP		Adapter, Bin (inner)				$ 40.79
7	WPW10235357		Bracket/glide Assembly   (Replaces: W10235357)			Immediately	$ 297.88
8	WPW10235367		Glide, Upper   (Replaces: W10235367)				$ 282.09
9	W10826788		Retainer, Glide (left)   (Replaces: 12925501SP)				$ 51.75
9	WP67006368		Retainer, Glide (right)   (Replaces: 12925502SP)				$ 173.61
10	WPW10330994		Bracket, Door Slide (left)   (Replaces: W10330994)			Immediately	$ 152.12
10	WPW10330995		Bracket, Door Slide (right)   (Replaces: W10330995)			Immediately	$ 306.55
11	W10446527		Handle-freezer (jfx2597aep0)				$ 281.31
11	WPW10298179		Handle-freezer (jfx2597aem0)   (Replaces: W10298179)				$ 287.72
12	WPW10661886		Screw, Handle   (Replaces: W10303465)			Immediately	$ 11.59

    View Diagram in Separate Window       Print Part List
