SELECT A DIAGRAM

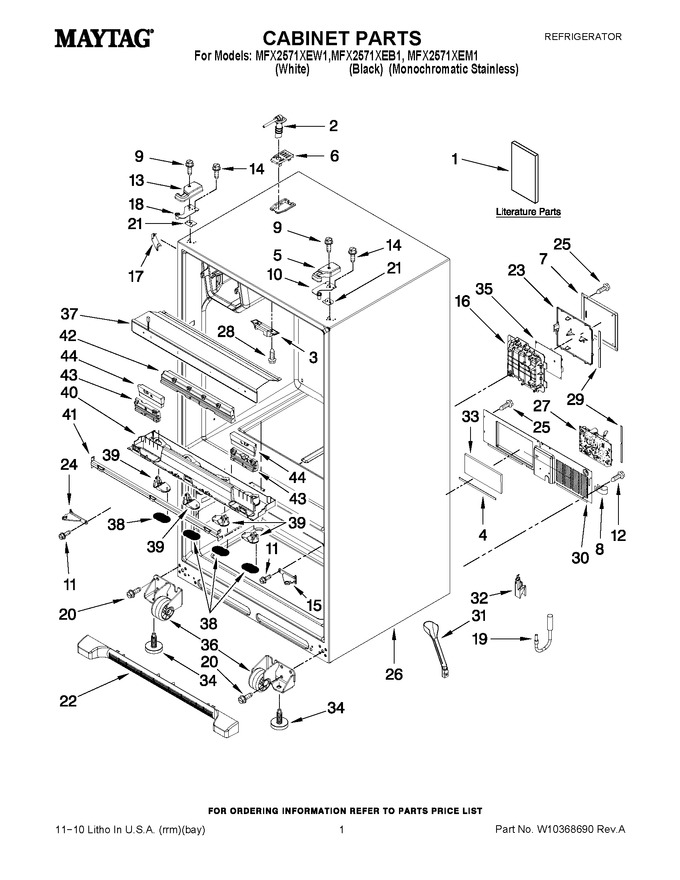

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10341191		Tech Sheet		Appelez-nous	-
1	W10295091		Guide, Energy		Appelez-nous	-
1	W10336158		Use & Care Guide		Appelez-nous	-
2	W11415785		Tube W/waterline, Fill-im   (Replaces: 12961401)			Immediately	$ 68.14
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 7.39
4	B5759655		Gasket, Mc Back				$ 11.73
5	WP67005956		Cover, Top Hinge (right) (black)   (Replaces: 12962302B)				$ 20.29
5	WPW10191117		Cover, Top Hinge (right) (apollo Grey)   (Replaces: 12962302AP)				$ 20.75
5	67005958		Cover, Top Hinge (right) (white)   (Replaces: 12962302W)				$ 19.41
6	12981401B		Cover, Fill Tube (black)				$ 11.93
6	12981401W		Cover, Fill Tube (white)				$ 11.93
6	W10191141		Cover, Fill Tube (apollo Grey)   (Replaces: 12981401AP)				$ 13.55
7	12961602		Cover, Control Box				$ 104.57
8	W11456069		Clamp-tube   (Replaces: M0108107)			Immediately	$ 20.16
9	WP8281196		Screw, Hinge Cover   (Replaces: 12992602)			Immediately	$ 6.80
10	W11592374		Hinge, Top Right   (Replaces: 12963205ED)			Immediately	$ 28.71
11	WPW10109200		Screw, Center Hinge   (Replaces: 489470)			Immediately	$ 7.92
12	67006425		Screw (3)   (Replaces: 12990511)			Immediately	$ 6.57
13	WPW10337634		Cover, Top Hinge (left) (white)   (Replaces: 12962301W)			Immediately	$ 21.19
13	WPW10337648		Cover, Top Hinge (left) (apollo Grey)   (Replaces: 12962301AP)				$ 20.81
13	W10337647		Cover, Top Hinge (left) (black)   (Replaces: 12962301B)			Immediately	$ 21.00
14	WP489349		Screw, Top Hinge   (Replaces: 12992403)			Immediately	$ 7.59
15	W10917988		Hinge, Center (rt) (apollo Grey)   (Replaces: 13000002AP)			Immediately	$ 86.07
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 82.38
15	13000002WD		Hinge, Center (rt) (white)				$ 144.89
16	W10285271		Box, Hv Control				$ 53.69
17	12587703W		Cover, Corner (2) (white)				$ 20.61
17	67003485		Cover, Corner (2) (black)   (Replaces: 12587703B)			Immediately	$ 19.93
17	WP12587703AP		Cover, Corner (2) (apollo Grey)   (Replaces: 12587703AP)				$ 7.26
18	W11592375		Hinge, Top Left   (Replaces: 12963204ED)				$ 28.73
19	W10223786		Waterline-househld		Appelez-nous	-
20	67006564		Screw (8)   (Replaces: 12991302)			Immediately	$ 7.34
21	12999501		Shim, Top Hinge (left)				$ 89.58
21	12999502		Shim, Top Hinge (right)				$ 90.54
22	WPW10534154		Grille, Toe (white)   (Replaces: W10244559)				$ 138.29
22	WPW10534155		Grille, Toe (apollo Grey)   (Replaces: W10244558)			Immediately	$ 107.60
22	WPW10534153		Grille, Toe (black)   (Replaces: W10244561)				$ 139.11
23	W11226688		Lid, Hv Control   (Replaces: 12957702K)				$ 76.64
24	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 82.38
24	W10917988		Hinge, Center (lt) (apollo Grey)   (Replaces: 13000001AP)			Immediately	$ 86.07
24	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 88.13
25	W11686675		Screw, Cover   (Replaces: 12990702)				$ 12.84
26	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
27	WPW10226427		Power Supply Modul   (Replaces: W10226427)			Immediately	$ 316.74
28	W10854958		Screw, Block   (Replaces: 12990302)				$ 7.11
29	12957801K		Gasket-hv Cntrl-2		Appelez-nous	-
30	WPW10270394		Cover, Mc Back   (Replaces: W10270394)				$ 187.86
31	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 41.61
32	W10236761		Cover, Water Valve				$ 16.11
33	12820505		Fiber, Acoustic				$ 71.70
34	WPW10141622		Brake, Foot   (Replaces: W10141622)			Immediately	$ 7.42
35	W10285198		Board, Hv Control				$ 294.89
36	W11820444		Roller Assembly (left)   (Replaces: W10275850)			Immediately	$ 33.62
36	W11820445		Roller Assembly (right)   (Replaces: W10275849)			Immediately	$ 33.62
37	W10296390		Mullion-incl.heatr (white)		Appelez-nous	-
37	W10296395		Mullion-incl.heatr (black)		Appelez-nous	-
37	W10296396		Mullion-incl.heatr (apollo Grey)		Appelez-nous	-
38	W10237349		Lens-ice Box Cover		Appelez-nous	-
39	W10679370		Module Led Lights   (Replaces: W10320778)				$ 128.48
40	W10311719		Housing-module		Appelez-nous	-
41	W10323211		Brace-mullion				$ 107.60
42	W10311721		Eps Spacer Block		Appelez-nous	-
43	W10316401		Spacer Wedge-l & R		Appelez-nous	-
44	W11697528		Spacer Wedge L & R   (Replaces: W10316403)		Appelez-nous	-
