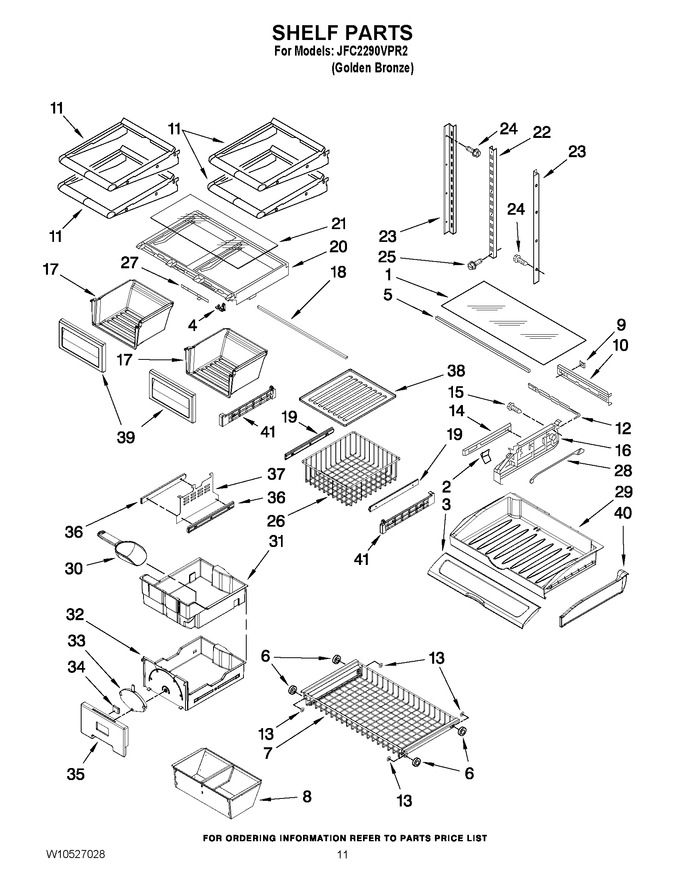

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67002332 | Glass, Pantry (Replaces: 12204815) |
|
Immediately | $ 226.17 | ||||
| 2 | W11498983 | Knob, Temp Control (Replaces: 12655204) |
|
$ 27.58 | |||||
| 3 | WP12656822 | Lid, Pantry Drawer (Replaces: 12656822) |
|
Immediately | $ 95.71 | ||||
| 4 | W10119222 | Knob, Humidity Control (2) |
|
$ 12.68 | |||||
| 5 | WP12227305WD | Brace, Pantry (2) (Replaces: 12227305WH) |
|
$ 97.52 | |||||
| 6 | W11214482 | Roller, Basket (Replaces: 2204542) |
|
$ 90.93 | |||||
| 7 | WPW10119854 | Basket, Middle (Replaces: W10119854) |
|
$ 262.07 | |||||
| 8 | W10144706 | Bin Assembly |
|
$ 196.22 | |||||
| 9 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 19.88 | |||||
| 10 | 12656202 | Housing, Control |
|
$ 133.96 | |||||
| 11 | W10156631 | Shelf, Stationary |
|
$ 117.82 | |||||
| 12 | WP67003793 | Slide, Temperature (Replaces: 12655402) |
|
Immediately | $ 70.64 | ||||
| 13 | 2207415 | Nut, Basket Roller |
|
$ 12.64 | |||||
| 14 | WPW10132653 | Glide, Drawer (left) (Replaces: W10132653) |
|
$ 297.25 | |||||
| 14 | W10132652 | Glide, Drawer (right) |
|
$ 230.56 | |||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 16 | WPW10121977 | Endcap, Pantry (right) (Replaces: W10121977) |
|
Immediately | $ 53.88 | ||||
| 16 | WPW10122078 | Endcap, Pantry (left) (Replaces: W10122078) |
|
Immediately | $ 56.02 | ||||
| 17 | W10119219 | Pan, Crisper |
|
Immediately | $ 142.06 | ||||
| 18 | W10490807 | Brace, Crisper (Replaces: W10119258) |
|
$ 91.28 | |||||
| 19 | WPW10170836 | Glide, Upper Basket (Replaces: W10170836) |
|
$ 282.76 | |||||
| 20 | WPW10119215 | Frame, Crisper (Replaces: W10119215) |
|
Immediately | $ 271.31 | ||||
| 21 | WP12204827 | Glass, Crisper Cover (Replaces: 12204827) |
|
$ 241.71 | |||||
| 22 | W10273463 | Ladder, Center |
|
$ 26.65 | |||||
| 23 | W10251971 | Ladder, L/r Side |
|
$ 53.52 | |||||
| 24 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 25 | W10709795 | Screw (Replaces: 12990515) |
|
$ 12.41 | |||||
| 26 | W10120003 | Basket, Upper |
|
$ 222.62 | |||||
| 27 | W10119217 | Slide, Humidity Control |
|
- | |||||
| 28 | 67003794 | Bar, Temperature Control (Replaces: 12655303) |
|
$ 12.44 | |||||
| 29 | WP12655703 | Drawer, Pantry (Replaces: 12655703) |
|
Immediately | $ 154.53 | ||||
| 30 | W10182881 | Scoop, Ice Pan |
|
$ 20.12 | |||||
| 31 | W10120005 | Pan, Ice |
|
$ 190.46 | |||||
| 32 | WPW10120008 | Carrier, Ice Pan (Replaces: W10120008) |
|
$ 130.29 | |||||
| 33 | W10184030 | Lever, Ice Pan |
|
$ 98.25 | |||||
| 34 | W11175810 | Latch, Magnet (Replaces: W10131252) |
|
$ 91.20 | |||||
| 35 | WPW10174720 | Front, Ice Pan (Replaces: W10174720) |
|
$ 67.60 | |||||
| 36 | WPW10170835 | Glide, Ice Pan (Replaces: W10170835) |
|
Immediately | $ 264.29 | ||||
| 37 | WPW10170987 | Support, Fz Door (Replaces: W10120014) |
|
Immediately | $ 302.33 | ||||
| 38 | WPW10451455 | Mat, Upper Basket (Replaces: W10451455) |
|
Immediately | $ 105.53 | ||||
| 39 | W10212414 | Front, Crisper |
|
Immediately | $ 89.91 | ||||
| 40 | WP67002321 | Divider, Pantry (Replaces: 12709301N) |
|
$ 30.41 | |||||
| 41 | W10163087 | Adapter, Basket (right) |
|
$ 22.87 | |||||
| 41 | W10163084 | Adapter, Basket (left) |
|
$ 17.58 |
