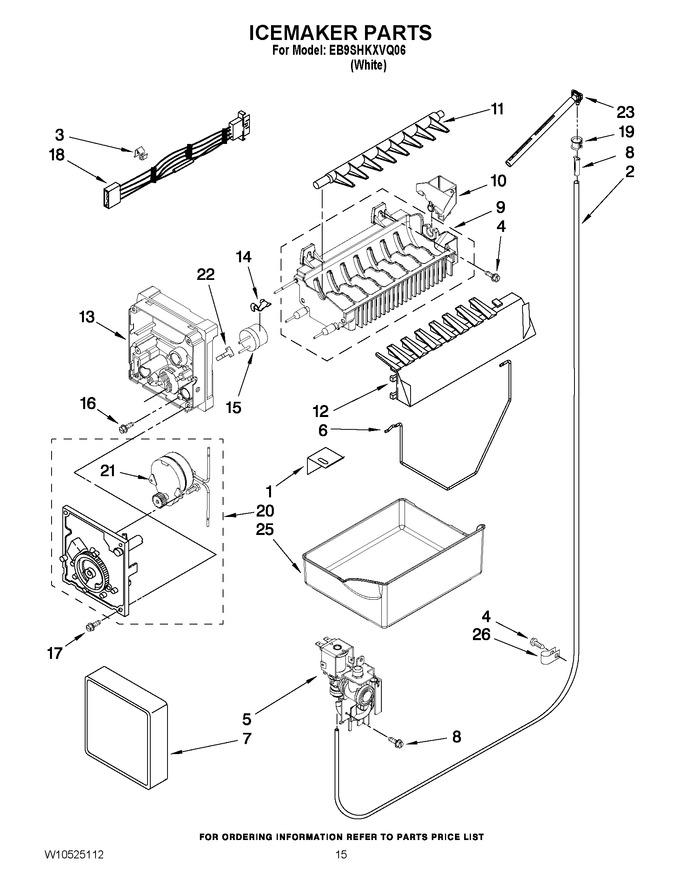

EB9SHKXVQ06 | The Brick : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	WP2256087	Bracket, Ice Maker (Replaces: 2256086)			$ 87.89
2	WPW10449192	Tube, Plastic (Replaces: W10449192)			$ 110.60
3	10526702	Clamp	Appelez-nous	-
4	WP489464	Screw (Replaces: 489464)		Immediately	$ 7.54
5	WP2315576	Valve-inlet (Replaces: W10219716)		Immediately	$ 88.31
6	W11285509	Arm, Shutoff (Replaces: W10202524)			$ 88.83
7	WPW10289690	Cover, Front (Replaces: 12582501)		Immediately	$ 7.94
8	WPA3223101	Insert, Tube (Replaces: A3223101)			$ 7.39
9	WPW10190929	Mold & Heater Assembly (also Order 542638) (Replaces: W10122527)			$ 210.17
10	W10122561	Cup Water Fill (Replaces: 628515)			$ 26.24
11	WP627843	Ejector (Replaces: 627843)			$ 79.00
12	WPW10122563	Ice Stripper (Replaces: W10122563)			$ 89.48
13	WP2195914	Support, Housing (Replaces: 2194712)			$ 98.82
14	WP628379	Clip, Fuse (Replaces: 628379)			$ 9.99
15	WP627985	Thermostat Order 542369 Cement Alumilastic) (Replaces: 628397)			$ 103.18
16	W10001280	Screw	Appelez-nous	-
17	WP489464	Screw (Replaces: 489464)		Immediately	$ 7.54
18	WPD7813010	Harness, Ice Maker (Replaces: D7813011)		Immediately	$ 66.57
19	WPM0114003	Clip, Speed (Replaces: M0114003)			$ 10.44
20	8201515	Module Assembly (includes Items 21) (Replaces: W10223929)		Immediately	$ 143.80
21	N/P	Motor (not Available, Order No.20)	Appelez-nous	-
22	6283795	Retainer	Appelez-nous	-
23	W11176463	Elbow, Fill Tube (Replaces: 10463203)		Immediately	$ 107.87
25	WP67001255	Pan, Ice (Replaces: 12695001)			$ 191.91
26	W11456069	Clamp-tube (Replaces: M0108107)		Immediately	$ 20.16
100	D7824706Q	Complete Ice Maker (Replaces: W10190978)		Immediately	$ 150.62
