SELECT A DIAGRAM

01 - Motor And Drive Parts

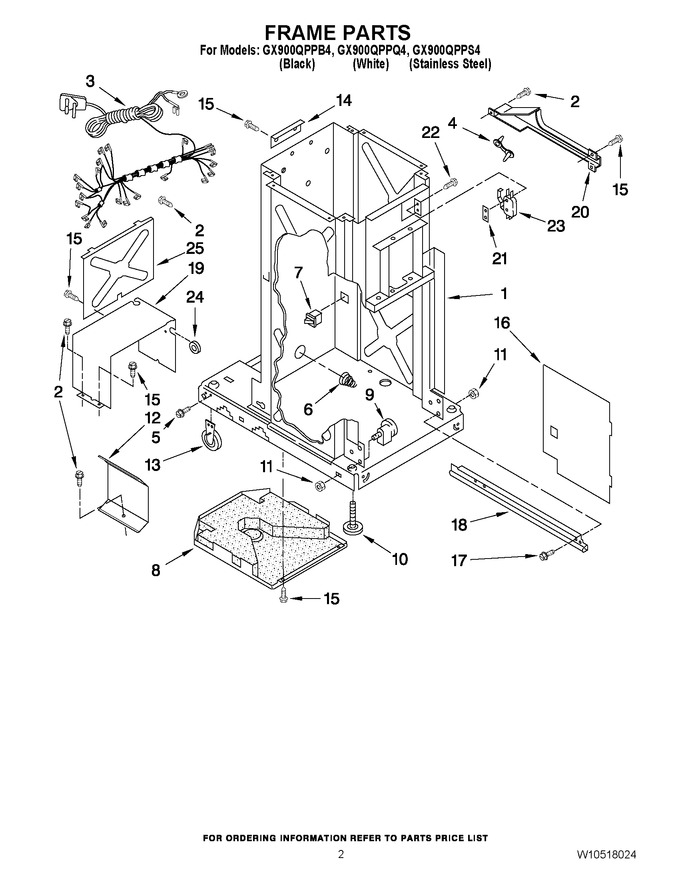

02 - Frame Parts


03 - Panel And Control Parts


04 - Container Parts


05 - Powerscrew And Ram Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Frame (not A Serviceable Part)		Appelez-nous	-
2	WPW10139210		Screw   (Replaces: 4152204)				$ 7.23
3	W10279443		Cord, Power		Appelez-nous	-
4	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
5	WP3351614		Screw   (Replaces: 780034)			Immediately	$ 6.57
6	WP777180		Spring, Container   (Replaces: 777180)				$ 88.14
7	W11243179		Switch, Drawer Safety   (Replaces: 4149377)				$ 67.27
8	WP780437		Pan, Bottom   (Replaces: 9870167)				$ 284.95
9	882688		Bearing, Roller   (Replaces: 4153788)				$ 19.07
10	WPW10001130		Bolt, Leveler   (Replaces: 775526)			Immediately	$ 7.02
11	WP776356		Locknut   (Replaces: 776356)				$ 7.68
12	9870867		Shield, Slide Track		Appelez-nous	-
13	W11023674		Wheel, Leveler   (Replaces: 9870585)				$ 48.65
14	775668		Angle, Frame Plate		Appelez-nous	-
15	WP489478		Screw   (Replaces: W10001260)				$ 7.36
16	WP9870444		Panel, Inner   (Replaces: 9870444)				$ 91.73
17	WP486754		Screw   (Replaces: 777458)				$ 7.21
18	WP9870975		Frame, Slide (left Hand)   (Replaces: 9870975)				$ 101.43
18	W11722978		Frame, Slide (right Hand)   (Replaces: 9870976)				$ 127.20
19	780434		Cover, Motor		Appelez-nous	-
20	4149659		Shield, Harness		Appelez-nous	-
21	777850		Nut, Plate				$ 69.42
22	777849		Screw				$ 6.62
23	WP777811		Switch, Top Limit & Directional   (Replaces: 777811)			Immediately	$ 104.96
24	W11679167		Grommet, Motor Cover   (Replaces: 776118)		Appelez-nous	-
25	608009		Plate, Cover				$ 39.79

    View Diagram in Separate Window       Print Part List
