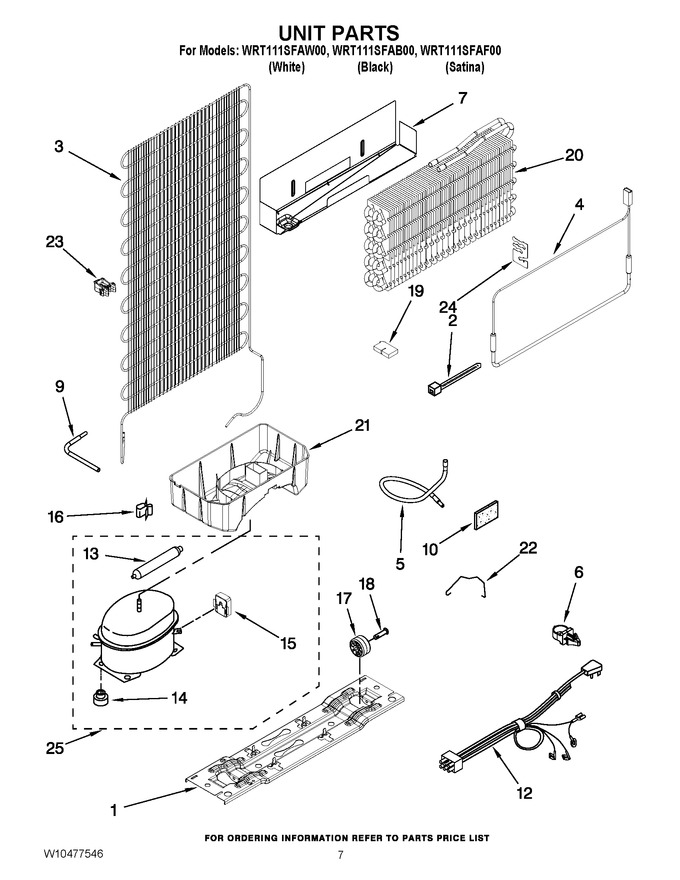

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10378704 | Support Plate, Compressor |
|
$ 60.34 | |||||
| 2 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.47 | |||||
| 3 | W10439363 | Condenser |
|
- | |||||
| 4 | W11193825 | Heater, Defrost (Replaces: W10331598) |
|
$ 122.91 | |||||
| 5 | W10334132 | Tube, Suction |
|
- | |||||
| 6 | 2219077 | Clip, Harness |
|
$ 57.82 | |||||
| 7 | W10345815 | Heat Shield |
|
$ 24.44 | |||||
| 9 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 97.75 | |||||
| 10 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 13.29 | ||||
| 12 | W10659093 | Wire Assy, Unit (incl Power Cord) (Replaces: W10411687) |
|
$ 130.16 | |||||
| 13 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 51.42 | ||||
| 14 | WP2163786 | Grommet (Replaces: 2222084) |
|
$ 7.52 | |||||
| 15 | W10448583 | Start Device Combination Relay & Overload |
|
- | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 6.80 | |||||
| 19 | W10261299 | Wedge, Evaporator |
|
- | |||||
| 20 | W11122867 | Evaporator Assy (Replaces: W10261633) |
|
$ 320.22 | |||||
| 21 | W11035419 | Evaporator Tray (Replaces: W10431000) |
|
$ 132.81 | |||||
| 22 | W10455417 | Bale Strap |
|
- | |||||
| 23 | WP326020544 | Support, Condenser (Replaces: 326020544) |
|
$ 9.77 | |||||
| 24 | W10286974 | Bracket |
|
- | |||||
| 25 | W10507466 | Compressor (includes Items 13, 14 & 15) (Replaces: W10431332) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge (3.00 Ozs. (r134a)) |
|
- |
