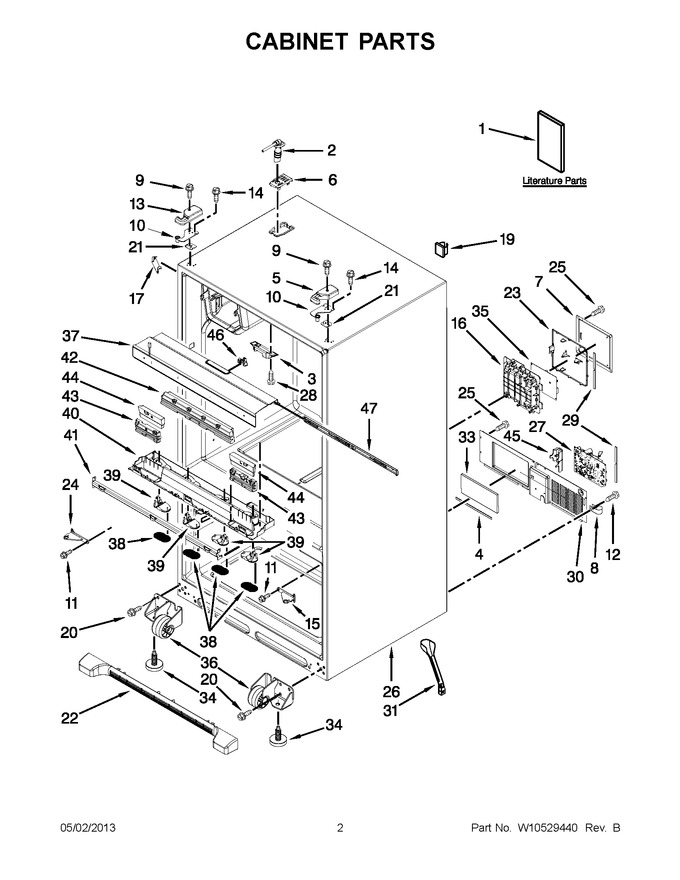

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10509610		Tech Sheet		Appelez-nous	-
1	W10450981		Guide, Energy		Appelez-nous	-
1	W10451446		Use & Care Guide		Appelez-nous	-
2	W11415785		Tube, Water   (Replaces: 12961401)			Immediately	$ 68.14
3	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 7.39
4	B5759655		Gasket				$ 11.73
5	WPW10191117		Cover, Top Hinge (right) (grey)   (Replaces: 12962302AP)				$ 20.75
6	W10191141		Cover, Fill Tube (grey)   (Replaces: 12981401AP)				$ 13.55
7	12961602		Cover, Control Box				$ 104.57
8	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 20.16
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 6.80
10	W11592375		Hinge, Top (left Hand)   (Replaces: 12963204ED)				$ 28.73
10	W11592374		Hinge, Top (right Hand)   (Replaces: 12963205ED)			Immediately	$ 28.71
11	W11573362		Screw   (Replaces: W10339086)				$ 13.25
12	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
13	WPW10337648		Cover, Top Hinge (left) (grey)   (Replaces: 12962301AP)				$ 20.81
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.59
15	W10917988		Hinge, Center (rt) (grey)   (Replaces: 13000002AP)			Immediately	$ 86.07
16	WPW10456699		Box, Hv Control   (Replaces: W10456699)				$ 118.06
17	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 7.26
19	WPM0104106		Clip, Cord   (Replaces: M0104106)				$ 7.35
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 7.34
21	12999501		Shim, Top Hinge (left Hand)				$ 89.58
21	12999502		Shim, Top Hinge (right Hand)				$ 90.54
22	WPW10534155		Grille, Toe (grey)   (Replaces: W10534155)			Immediately	$ 107.60
23	W11226688		Lid, Hv Control Box   (Replaces: W10296541)				$ 76.64
24	W10917988		Hinge, Center (lt) (grey)   (Replaces: 13000001AP)			Immediately	$ 86.07
25	W11686675		Screw   (Replaces: 12990702)				$ 12.84
26	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
27	WPW10226427		Control, Electronic Power Saupply   (Replaces: W10226427)			Immediately	$ 316.74
28	W10854958		Screw   (Replaces: 12990302)				$ 7.11
29	12957801		Gasket, Hv Control Box		Appelez-nous	-
30	W10211854		Cover, Unit				$ 160.53
31	W10619951		Tube, Drain   (Replaces: W10344402)			Immediately	$ 41.61
33	12820505		Insulation				$ 71.70
34	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.42
35	W11035835		Board, Hv Control   (Replaces: W10467104)			Immediately	$ 452.31
36	W11820444		Roller Assembly (left Hand)   (Replaces: W10515763)			Immediately	$ 33.62
36	W11820445		Roller Assembly (right Hand)   (Replaces: W10515762)			Immediately	$ 33.62
37	W10508289		Assembly, Secondary Mullion (grey)		Appelez-nous	-
38	W10237349		Lens, Icebox Cover Led		Appelez-nous	-
39	W10679370		Module, Led Light   (Replaces: W10320778)				$ 128.48
40	W10311719		Housing, Module		Appelez-nous	-
41	W10492234		Brace, Mullion		Appelez-nous	-
42	W10311721		Mullion, Secondary		Appelez-nous	-
43	W10316401		Wedge, Spacer Left Hand & Right Hand		Appelez-nous	-
44	W11697528		Wedge, Spacer Left Hand & Right Hand   (Replaces: W10316403)		Appelez-nous	-
45	W10208592		Cover, Valve		Appelez-nous	-
46	W10827867		Knob-vent Slide   (Replaces: W10331297)		Appelez-nous	-
47	W10367522		Slide-mullion Vent		Appelez-nous	-
