Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13107852B Door, Left (black) Appelez-nous -
2 13107855BQ Door, Right (black)   (Replaces: 13107855B) Special Order $ 1,042.81

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 74.40

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 79.21

5 67004748 Bin, Shelf (3) (medium)   (Replaces: 12801904) In-Stock Immediately $ 78.59

6 WP12722803B Mullion, Door (black)   (Replaces: 12722803BN) Special Order $ 220.83

7 W11311945 Screw   (Replaces: 12990204) Special Order $ 13.25

8 W11368721 Gasket, Door (2) (black)   (Replaces: W10435968) In-Stock Immediately $ 184.78

9 13004701BN Handle, Door (black) Appelez-nous -
10 WP98165 Screw   (Replaces: 12990504) Special Order $ 7.71

11 W11708403 Stop, Door (black)   (Replaces: 12968202B) In-Stock Immediately $ 13.28

12 WPW10170766 Nameplate   (Replaces: W10170766) In-Stock Immediately $ 63.45

14 WPW10661886 Screw   (Replaces: W10303465) In-Stock Immediately $ 11.59

15 WP67003639 Closure, Door (black)   (Replaces: 12028505B) Special Order $ 81.29

16 67004749 Bin, Shelf (2) (gallon)   (Replaces: 12840002) Special Order $ 81.05

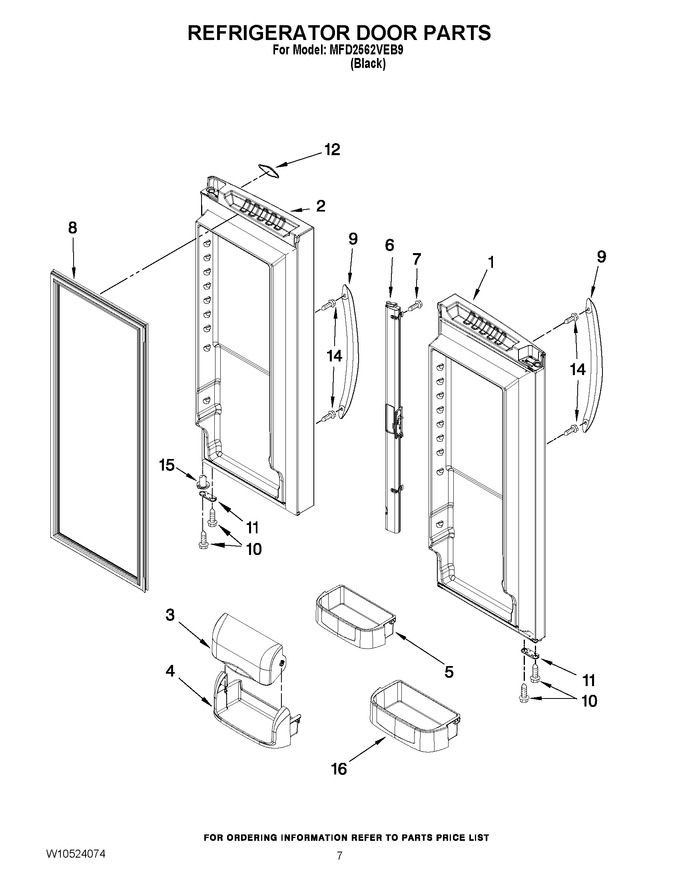

    View Diagram in Separate Window     Print Icon   Print Part List
