SELECT A DIAGRAM

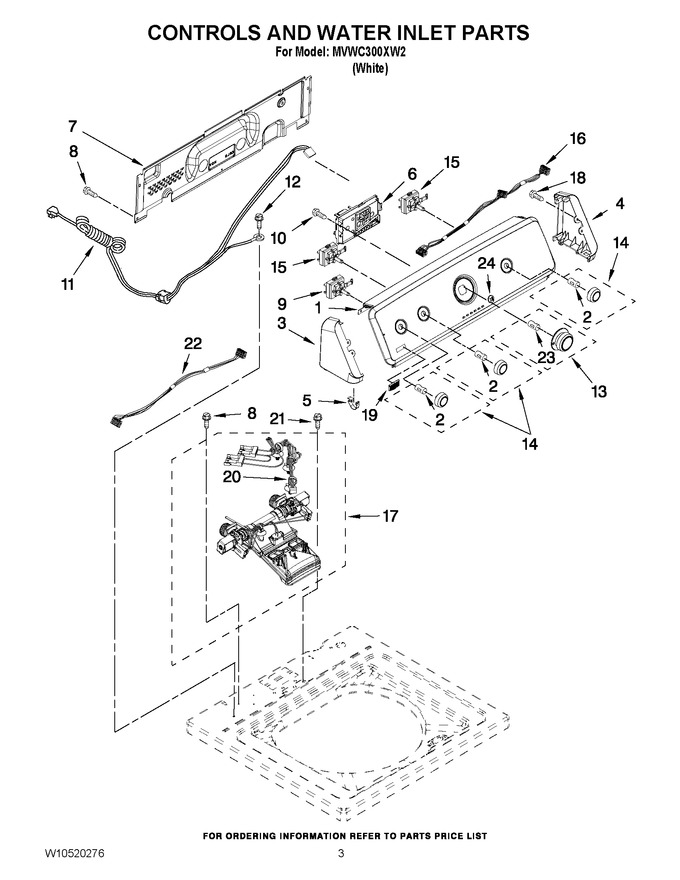

01 - Top And Cabinet Parts


02 - Controls And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10251336		Panel, Console				$ 208.10
2	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.38
3	WPW10193824		Cap, End (l.h.) (includes Item 5)   (Replaces: W10193824)				$ 66.95
4	WPW10193821		Cap, End (r.h.) (includes Item 5)   (Replaces: W10193821)				$ 67.25
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W10480262		Control Unit Assembly,				$ 373.91
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 324.39
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
9	WPW10285518		Switch, Temperature   (Replaces: W10285518)			Immediately	$ 142.31
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
11	WPW10525194		Cord, Power   (Replaces: W10276649)				$ 147.07
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	WPW10317454		Knob, Timer   (Replaces: W10317454)				$ 57.12
14	WPW10317455		Knob, Control   (Replaces: W10317455)				$ 57.00
15	WPW10285511		Switch, Rotary Encoder   (Replaces: W10285511)			Immediately	$ 163.89
16	W10291177		Harness, Upper				$ 137.40
17	WPW10683603		Inlet Assembly, Water   (Replaces: W10423125)			Immediately	$ 84.60
18	W11693756		Screw   (Replaces: 359625)			Immediately	$ 13.28
19	W10323734		Badge				$ 57.56
20	W10876654		Harness, Valve   (Replaces: W10423127)				$ 175.43
21	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 9.63
22	W10291184		Harness, Upper				$ 147.71
23	WP688805		Clip, Knob   (Replaces: 688805)			Immediately	$ 7.38
24	WPW10251309		Pushbutton, Start   (Replaces: W10251309)			Immediately	$ 68.40

    View Diagram in Separate Window       Print Part List
