01 - Cooktop Parts

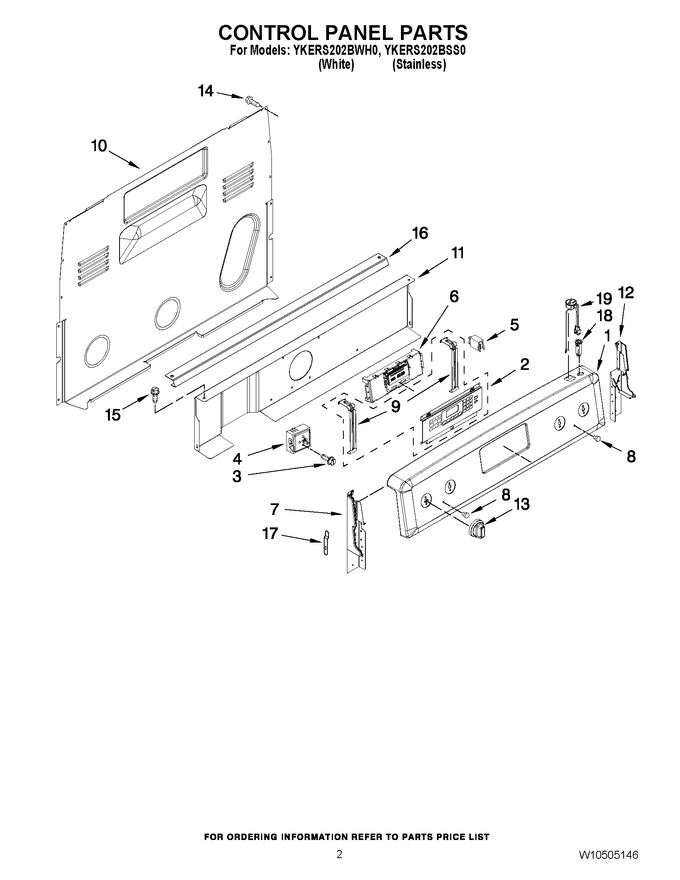

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10347955 | Panel, Backguard (white) |
|
$ 133.42 | |||||
| 1 | W10347957 | Panel, Backguard (stainless) |
|
- | |||||
| 2 | W10324427 | Assembly, Active |
|
$ 319.24 | |||||
| 3 | WP3400882 | Screw, Switch (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 4 | WPW10411934 | Switch, Infinte (rf) (Replaces: W10411934) |
|
Immediately | $ 98.85 | ||||
| 4 | WPW10434452 | Switch, Infinte (lf) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 4 | 5500-287 | Switch, Infinte (lr & Rr) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WPW10340694 | Control, Mrc (Replaces: W10340694) |
|
$ 643.36 | |||||
| 7 | W11219365 | Endcap Left (white) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 7 | W11219664 | Endcap Left (black) (Replaces: W10184437) |
|
$ 138.45 | |||||
| 8 | WP3196068 | Lens, Red (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 9 | W10318546 | Bracket, Control |
|
- | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 12 | W11219370 | Endcap Right (white) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 12 | W11219665 | Endcap Right (black) (Replaces: W10184438) |
|
$ 40.65 | |||||
| 13 | W10854052 | Knob (stainless) (Replaces: W10324395) |
|
$ 27.13 | |||||
| 13 | W10524672 | Knob (white) (Replaces: W10475384) |
|
$ 17.03 | |||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 16 | W10525121 | Bracket, Console Mounting (Replaces: W10182322) |
|
$ 88.97 | |||||
| 17 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 18 | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 18 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 19 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 16.62 | ||||
| 19 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 100.00 |
