SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts

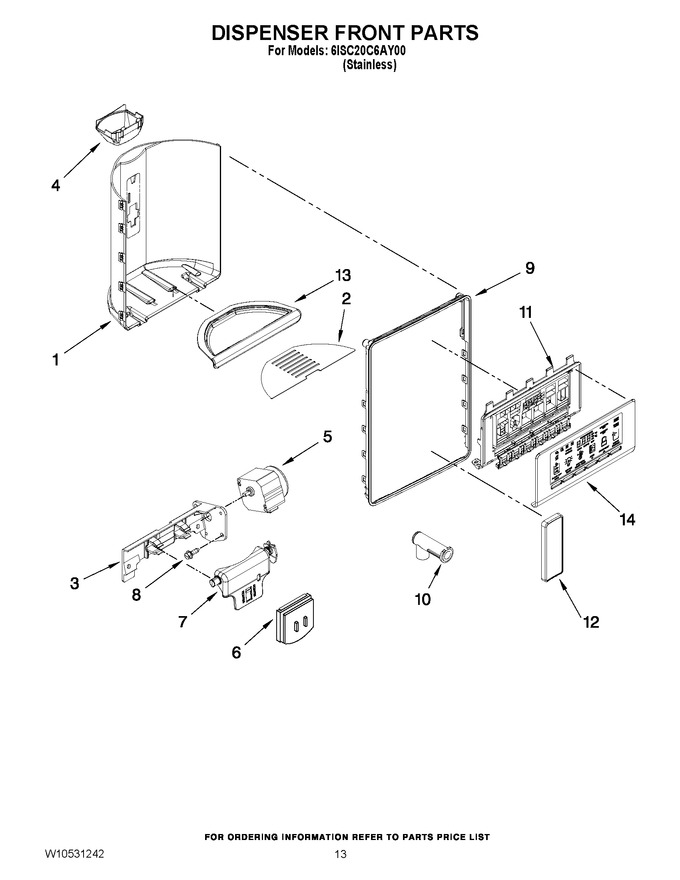

08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10276255		Grate, Drip Tray		Appelez-nous	-
3	W10174827		Bracket, Ice Door				$ 68.78
4	WPW10435760		Chute, Door   (Replaces: W10339578)			Immediately	$ 21.55
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 93.71
6	W10781989		Ice Door Assembly (includes Items 3, 5, 7, & 8)   (Replaces: W10353570)				$ 149.75
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 37.67
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.18
9	W10276248		Trim Ring		Appelez-nous	-
10	W11566468		Spigot   (Replaces: W10294737)			Immediately	$ 52.70
11	WPW10372212		Electronic Control Assy   (Replaces: W10254295)				$ 254.83
12	WPW10370594		Pad, Ice & Water (midnight Grey)   (Replaces: W10370594)				$ 279.55
13	W10276254		Tray, Housing (satina)		Appelez-nous	-
14	W10254300		Front Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
