01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts

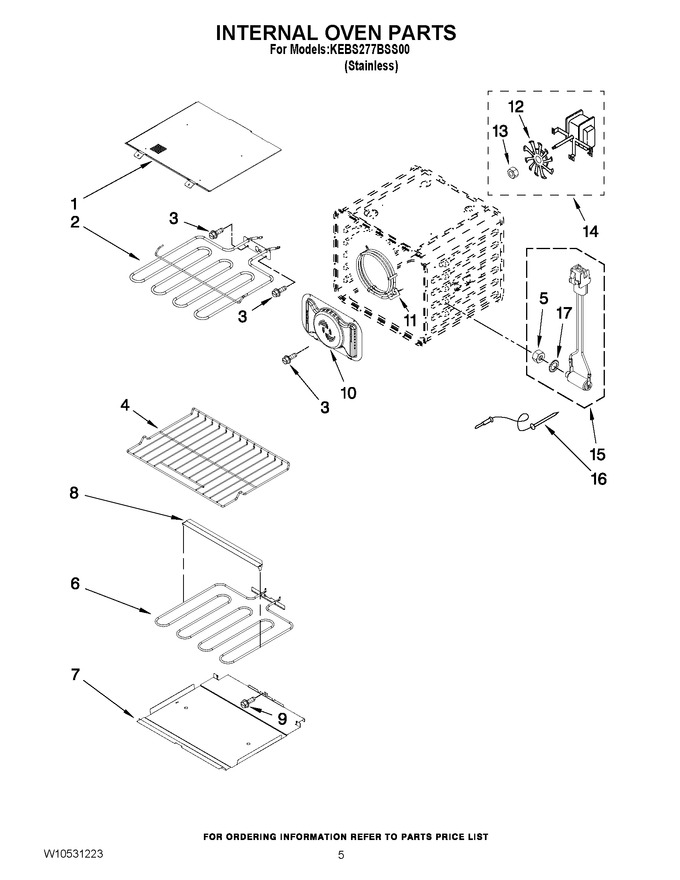

04 - Internal Oven Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11290999 | Element, Broil Shield (Replaces: W10318164) |
|
$ 189.86 | |||||
| 2 | W10804429 | Element, Broil (Replaces: W10317383) |
|
Immediately | $ 137.62 | ||||
| 3 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 4 | WPW10554529 | Rack, Oven (Replaces: W10526029) |
|
$ 155.92 | |||||
| 5 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 6.57 | |||||
| 6 | W11545804 | Element, Bake (Replaces: W10282948) |
|
Immediately | $ 131.81 | ||||
| 7 | W10318198 | Tray, Bake |
|
$ 176.25 | |||||
| 8 | W10282957 | Tray, Hidden Bake Crossbar |
|
$ 42.72 | |||||
| 9 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.80 | ||||
| 10 | W11234761 | Cover, Fan (Replaces: W10359277) |
|
$ 213.30 | |||||
| 11 | W11678579 | Element, Convection (Replaces: W10317384) |
|
Immediately | $ 108.90 | ||||
| 12 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.12 | ||||
| 13 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 19.60 | |||||
| 14 | W10794022 | Fan, Convection (Replaces: W10116228) |
|
Immediately | $ 234.38 | ||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
$ 143.37 | |||||
| 16 | WP9755542 | Probe, Meat (Replaces: 9755542) |
|
Immediately | $ 89.76 | ||||
| 17 | WP9755547 | Washer, Lock (Replaces: 9755547) |
|
$ 5.77 |
