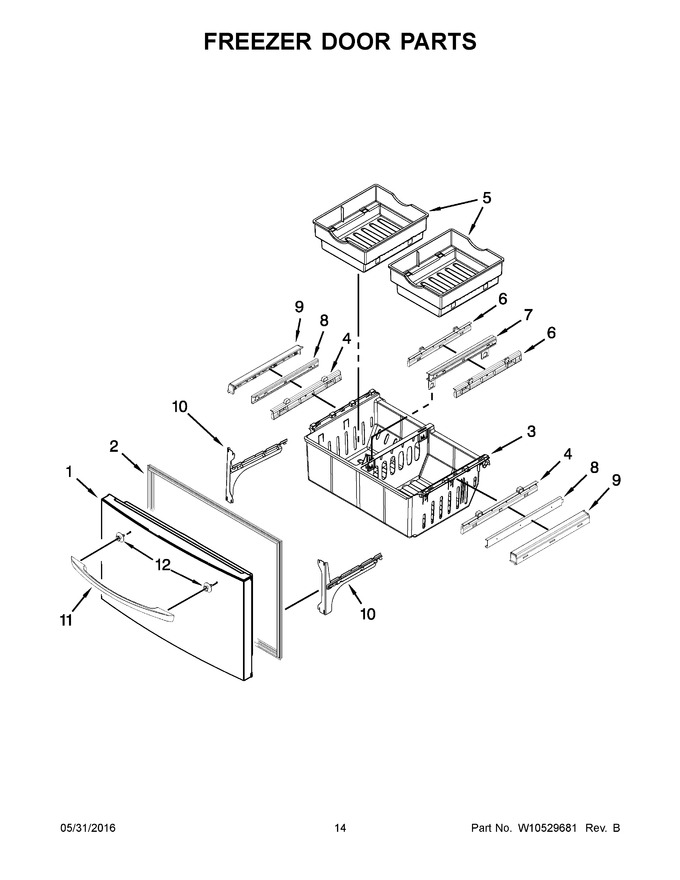

08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107111WQ		Freezer Door (white)   (Replaces: 13107111W)				$ 619.33
2	WPW10443321		Gasket, Door (white)   (Replaces: W10443321)				$ 323.86
3	12924801SP		Bin, Lower		Appelez-nous	-
4	W10166742		Adapter, Outer Bin   (Replaces: 12925403SP)				$ 88.31
5	WP12924903		Left Hand   (Replaces: 12924903)				$ 119.07
6	12925404SP		Adapter, Center Bin				$ 40.79
7	WPW10235357		Assembly, Bracket And Glide   (Replaces: W10235357)			Immediately	$ 297.88
8	WPW10235367		Glide, Drawer   (Replaces: W10235367)				$ 282.09
9	WP67006368		Retainer, Glide (right Hand)   (Replaces: 12925502SP)				$ 173.61
10	WPW10330994		Bracket, Door Slide (left Hand)   (Replaces: W10330994)			Immediately	$ 152.12
11	WPW10314520K		Handle, Freezer (white)   (Replaces: W10314520)				$ 217.49
12	WPW10661886		Screw   (Replaces: W10303465)			Immediately	$ 11.59
10A	WPW10330995		Bracket, Door Slide (right Hand)   (Replaces: W10330995)			Immediately	$ 306.55
11A	W10314521		Handle, Freezer (black)		Appelez-nous	-
11B	WPW10314522K		Handle, Freezer (stainless)   (Replaces: W10314522)				$ 252.63
1A	13107111BQ		Freezer Door (black)   (Replaces: 13107111B)				$ 624.85
1B	13107111SQ		Freezer Door (stainless)   (Replaces: 13107111S)				$ 994.15
2A	WPW10436253		Gasket, Door (black)   (Replaces: W10436253)				$ 324.80
2B	WPW10714545		Gasket, Door (grey)   (Replaces: W10443322)				$ 291.24
9A	W10826788		Retainer, Glide (left Hand)   (Replaces: 12925501SP)				$ 51.75
