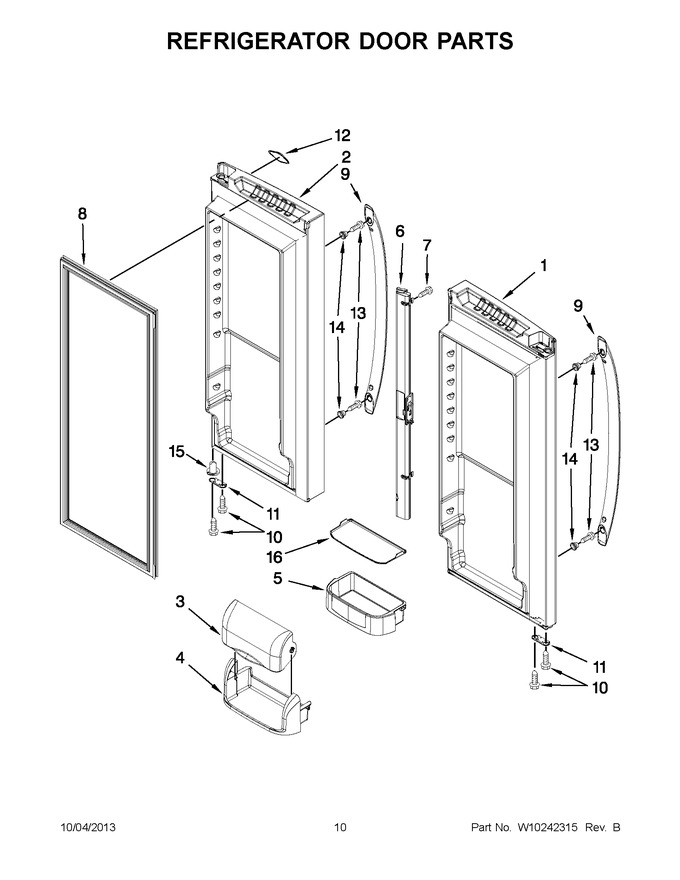

06 - Refrigerator Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Icemaker Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107780S		Door, Left (stainless)		Appelez-nous	-
2	13107764S		Door, Right (stainless)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 79.21
5	12699207		Bucket, Gallon		Appelez-nous	-
5	WPW10371193		Bucket, Medium   (Replaces: 67003770)			Immediately	$ 70.97
6	WP12722803B		Mullion, Door (black)   (Replaces: 67003264)				$ 220.83
7	W11311945		Screw   (Replaces: 67006786)				$ 13.25
8	W11368721		Gasket, Door (black)   (Replaces: 12723206B)			Immediately	$ 184.78
9	W10136873		Handle, Door (stainless)				$ 99.41
10	WP98165		Screw   (Replaces: 67006287)				$ 7.71
11	W11708403		Stop, Door (black)   (Replaces: 67007011)			Immediately	$ 13.28
12	Y12528501		Nameplate			Immediately	$ 56.47
13	WP3387230		Screw   (Replaces: 67002935)			Immediately	$ 7.69
14	WP67006113		Mount, Handle   (Replaces: 67006113)			Immediately	$ 11.30
15	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 81.29
16	67005453		Gripper, Gallon		Appelez-nous	-
16	67003212		Gripper, Medium		Appelez-nous	-
