01 - Top And Console Parts
02 - Cabinet Parts

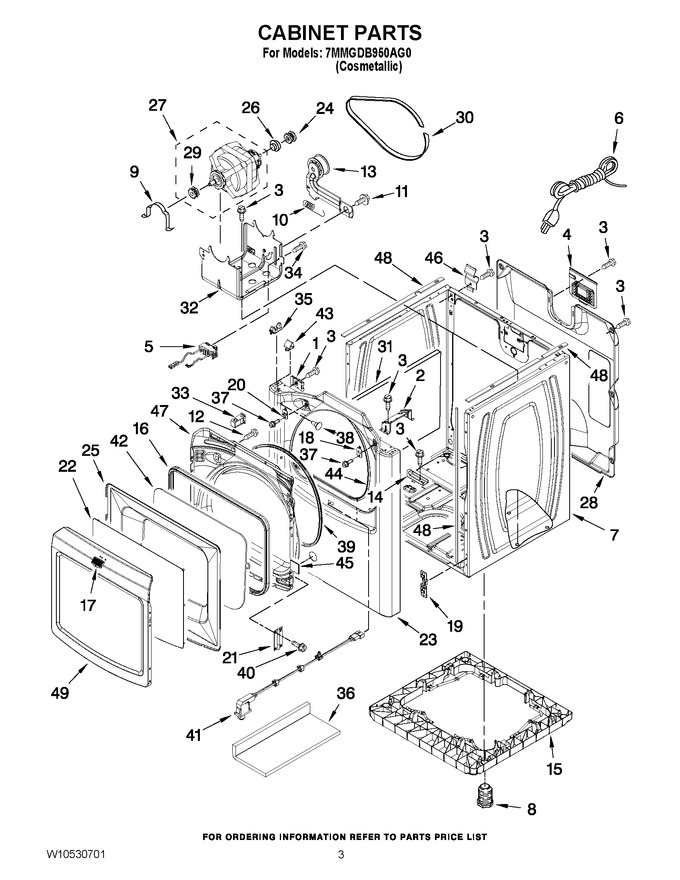

03 - Bulkhead Parts
04 - Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 2 | 8544753 | Bracket, Burner |
|
- | |||||
| 3 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.43 | |||||
| 4 | W11736322 | Plate, Cover Terminal Block (Replaces: 8558833) |
|
- | |||||
| 5 | WPW10411937 | Switch, Broken Belt (Replaces: W10411937) |
|
Immediately | $ 32.45 | ||||
| 6 | W11222083 | Cord, Power (Replaces: W10440460) |
|
$ 113.96 | |||||
| 7 | W10304162 | Cabinet (cosmetallic) |
|
$ 350.24 | |||||
| 8 | W10813918 | Foot, Dryer (Replaces: W10363894) |
|
Immediately | $ 12.33 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.40 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 13 | WPW10547292 | Pulley Assembly (Replaces: 8547160) |
|
Immediately | $ 39.58 | ||||
| 14 | W10201446 | Bracket, Gas Pipe |
|
- | |||||
| 15 | W10363887 | Riser, Full |
|
- | |||||
| 16 | W10111859 | Seal, Inner Glass |
|
$ 109.13 | |||||
| 17 | W10492808 | Badge (Replaces: W10323735) |
|
$ 53.84 | |||||
| 18 | WPW10111888 | Plug, Strike (Replaces: W10111888) |
|
$ 26.72 | |||||
| 19 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 14.71 | ||||
| 20 | W10295405 | Strike & Plate Assembly (Replaces: W10111906) |
|
$ 103.58 | |||||
| 21 | W10463337 | Assembly, Hinge |
|
$ 73.04 | |||||
| 22 | W10369542 | Window, Outer |
|
- | |||||
| 23 | W10463264 | Panel, Front |
|
$ 332.81 | |||||
| 24 | W10136930 | Pulley, Drum Motor |
|
$ 48.18 | |||||
| 25 | WPW10532209 | Bezel (Replaces: W10304170) |
|
$ 185.54 | |||||
| 26 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 125.17 | ||||
| 27 | WPW10448896 | Motor, Assembly 60 Hz. (Replaces: W10460374) |
|
Immediately | $ 308.78 | ||||
| 28 | W10140148 | Panel, Rear |
|
$ 139.84 | |||||
| 29 | W10139247 | Pulley, Blower |
|
Immediately | $ 120.20 | ||||
| 30 | WPW10136934 | Belt, Drive (Replaces: W10136934) |
|
Immediately | $ 51.27 | ||||
| 31 | W10123956 | Sound Panel |
|
- | |||||
| 32 | WPW10308685 | Bracket, Motor (Replaces: W10308685) |
|
$ 122.06 | |||||
| 33 | WPW10111905 | Door Catch Assembly (Replaces: W10111905) |
|
Immediately | $ 6.83 | ||||
| 34 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 35 | WP8568303 | Locator, Snap Down (Replaces: 8568303) |
|
$ 7.15 | |||||
| 36 | W11037143 | Cover, Door Switch (Replaces: W10215725) |
|
- | |||||
| 37 | WP3400805 | Screw (Replaces: 3400805) |
|
$ 6.80 | |||||
| 38 | W10144494 | Plug, Hole |
|
$ 35.14 | |||||
| 39 | W10239307 | Seal, Door (Replaces: W10221653) |
|
$ 127.14 | |||||
| 40 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 41 | W11177687 | Door Switch Assembly (Replaces: W10350909) |
|
$ 79.34 | |||||
| 42 | WPW10111857 | Glass, Inner Door (Replaces: W10111857) |
|
$ 275.57 | |||||
| 43 | WP8576625 | Lock, Top Front (Replaces: 8576625) |
|
$ 6.84 | |||||
| 44 | W10044490 | Seal, Front Panel |
|
$ 30.65 | |||||
| 45 | W10301055 | Plug, Front Panel (cosmetallic) |
|
$ 13.51 | |||||
| 46 | WP8066217 | Hinge, Top (Replaces: 238088) |
|
$ 7.39 | |||||
| 47 | W10304172 | Door, Inner (cosmetallic) |
|
$ 133.40 | |||||
| 48 | WPW10157932 | Seal, Foam (Replaces: W10316529) |
|
Immediately | $ 7.61 | ||||
| 49 | WPW10344649 | Door, Outer (cosmetallic) (Replaces: W10344649) |
|
$ 178.90 | |||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
