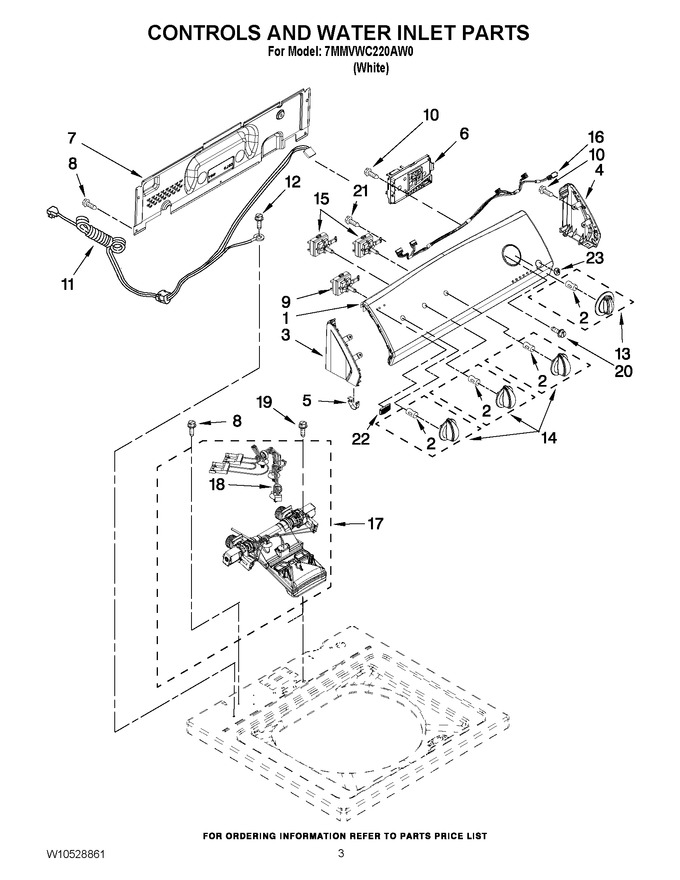

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10508710		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.38
3	WPW10251358		Cap, End (l.h.) Includes Item 5)   (Replaces: W10251358)				$ 46.28
4	WPW10251355		Cap, End (r.h.) (includes Item 5)   (Replaces: W10251355)				$ 46.25
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W10513742		Control Unit Assembly, Machine & Motor		Appelez-nous	-
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 324.39
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
9	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 171.42
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
11	WPW10525194		Cord, Power   (Replaces: W10276649)				$ 147.07
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	WPW10327522		Knob, Timer   (Replaces: W10327522)				$ 45.87
14	WPW10327523		Knob, Control   (Replaces: W10327523)				$ 49.62
15	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 163.89
16	W10291183		Harness, Upper				$ 140.44
17	WPW10683653		Inlet Assembly, Water   (Replaces: W10472844)				$ 194.84
18	W10876654		Harness, Valve   (Replaces: W10423127)				$ 175.43
19	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 9.63
20	WP3400818		Screw   (Replaces: 3400818)				$ 7.93
21	3400073		Screw		Appelez-nous	-
22	W10199708		Badge				$ 47.95
23	WPW10251309		Pushbutton, Start   (Replaces: W10251309)			Immediately	$ 68.40

    View Diagram in Separate Window       Print Part List
