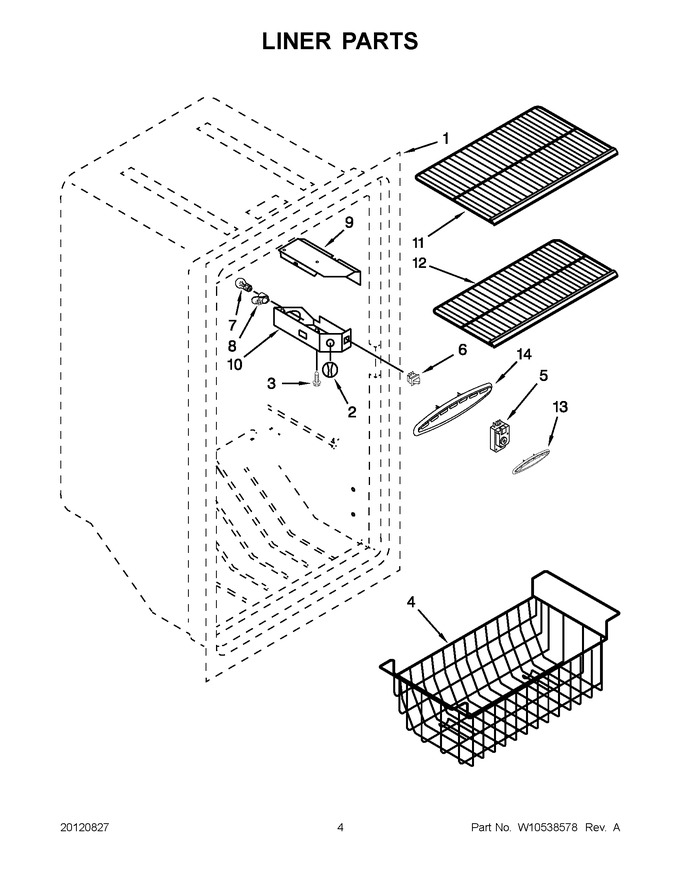

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob Control				$ 27.09
3	3-24004-092		Screw				$ 4.28
4	4-60064-001		Basket, Wire		Appelez-nous	-
5	WP3-81329		Timer, Defrost   (Replaces: 3-81329)			Immediately	$ 179.23
6	W11384469		Switch, Light   (Replaces: 2-32164-001)			Immediately	$ 35.18
7	40A15		Bulb, Light   (Replaces: 1-34291-002)			Immediately	$ 1.98
8	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 104.10
9	3-82392-001		Shield, Corner Control		Appelez-nous	-
10	4-82389-002		Housing, Corner Control				$ 39.19
11	WP4-82634-001		Shelf, Slide Out   (Replaces: 4-82634-001)				$ 140.00
12	WP4-82977-001		Shelf, Frost Free   (Replaces: 4-82977-001)				$ 137.48
13	4-82573-002		Air Diffuser, Short		Appelez-nous	-
14	4-82556-002		Air Diffuser, Long		Appelez-nous	-
