SELECT A DIAGRAM

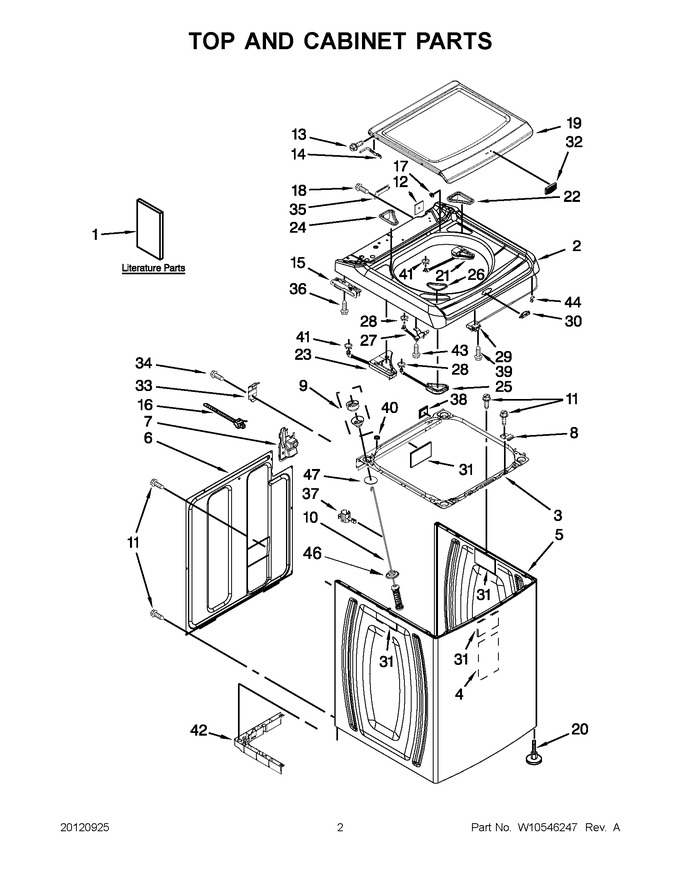

01 - Top And Cabinet Parts


02 - Motor, Basket And Tub Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10492233		Installation Instructions		Appelez-nous	-
1	W10403990		Tech Sheet		Appelez-nous	-
1	W10469238		Use And Care Guide		Appelez-nous	-
1	W10497887		Energy Guide		Appelez-nous	-
2	W10419608		Top (cosmetallic)				$ 136.81
3	W10386349		Frame Assembly, Cabinet Top		Appelez-nous	-
4	W11096159		Damper, Sound   (Replaces: W10414221)				$ 28.73
5	W10304158		Cabinet (cosmetallic)		Appelez-nous	-
6	8566090		Panel, Rear				$ 131.63
7	WPW10160572		Retainer, Drain Hose Storage   (Replaces: W10160572)				$ 8.58
8	WPW10248088		Lock, Top   (Replaces: W10248088)				$ 18.83
9	W10405423		Ball, Suspension (set Of 4 - Includes Suspension Bushings)		Appelez-nous	-
10	W10440786		Damper Assembly, Tub Suspension   (Replaces: W10368627)			Immediately	$ 103.36
11	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
12	W10161707		Top Foam Seal		Appelez-nous	-
13	W10442074		Screw, Lid Hinge Mounting				$ 9.18
14	WPW10544328		Hinge Arm, Lid (right Hand)   (Replaces: W10389420)				$ 30.06
14	WPW10544329		Hinge Arm, Lid (left Hand)   (Replaces: W10389421)				$ 35.00
15	W10492005		Hinge, Spring Assembly (right Hand)				$ 54.47
15	W10492004		Hinge, Spring Assembly (left Hand)				$ 77.53
16	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 7.02
17	WPW10119519		Spacer, Lid Hinge   (Replaces: W10315174)				$ 8.09
18	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
19	W10504803		Lid, Glass Assembly (cosmetallic)		Appelez-nous	-
20	WPW10363890		Foot Assembly, Leveling   (Replaces: W10363890)				$ 13.84
21	WPW10172146		Dispenser, Fabric Softener   (Replaces: W10172146)				$ 171.44
22	W10093807		Bezel, Fabric Softener Dispenser (gray)				$ 24.16
23	WPW10187307		Dispenser, Bleach   (Replaces: W10187307)			Immediately	$ 178.98
24	W10391564		Bezel, Bleach Dispenser (gray)				$ 26.67
25	WPW10172154		Dispenser, Detergent   (Replaces: W10172154)			Immediately	$ 171.35
26	W10093809		Bezel, Detergent Dispenser (gray)				$ 24.75
27	WPW10106990		Nozzle Assembly, Fresh Water   (Replaces: W10106990)			Immediately	$ 107.07
28	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
29	WPW10619844		Lock Assembly, Lid   (Replaces: W10059230)			Immediately	$ 155.46
30	W10093806		Bezel, Lid Lock (gray)				$ 22.70
31	WP8564458		Absorber, Impact   (Replaces: 8564458)			Immediately	$ 8.38
32	W10492808		Badge   (Replaces: W10323735)				$ 59.82
33	W10432012		Hinge, Top				$ 89.46
34	W11727444		Screw   (Replaces: W10189731)		Appelez-nous	-
35	8563941		Cover, Harness				$ 87.73
36	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
37	8543784		Bracket, Drain Hose				$ 37.38
38	8578386		Shield, Wire Harness		Appelez-nous	-
39	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
40	8576476		Spacer, Rear (cabinet/top)				$ 17.57
41	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
42	WPW10378013		Riser, Washer (rear Left)   (Replaces: W10378013)				$ 117.15
42	WPW10370996		Riser, Washer (front Left)   (Replaces: W10370996)				$ 117.21
42	W10370995		Riser, Washer (front Right)				$ 45.57
42	W10378012		Riser, Washer (rear Right)		Appelez-nous	-
43	W11700520		Screw, Dispenser Housing Mounting   (Replaces: 3400061)				$ 14.28
44	WP90016		Clip, Harness   (Replaces: 90016)				$ 11.89
45	W10406220		Screw				$ 13.53
46	WP8564017		Cup, Suspension   (Replaces: 8564017)				$ 28.79
47	WP8577896		Washer, Suspension Umbrella   (Replaces: 8577896)				$ 8.12

    View Diagram in Separate Window       Print Part List
