SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts

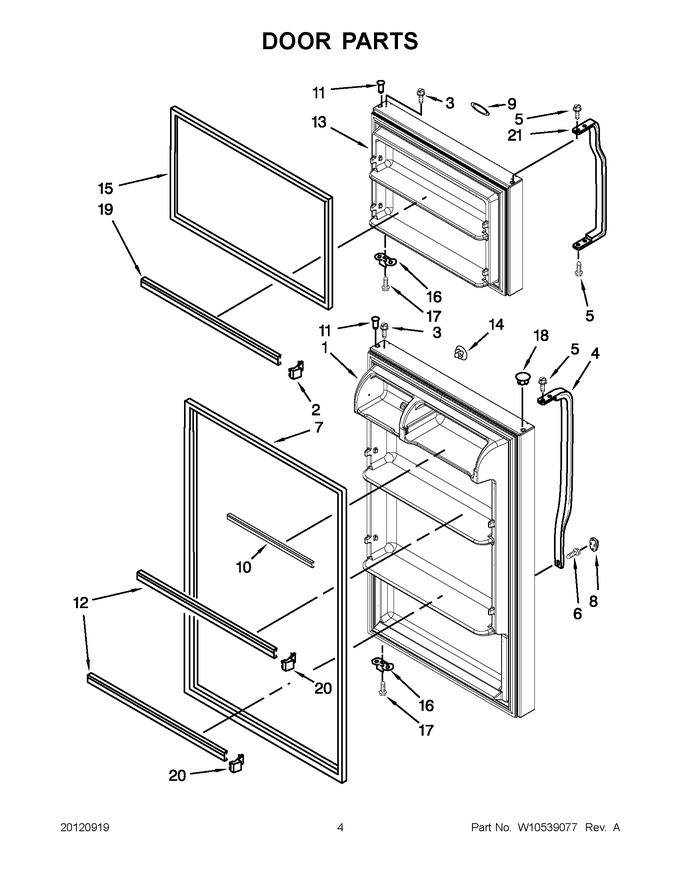

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	L2316145W		Refrigerator Door (includes Item 7) (white)   (Replaces: 2316145W)		Appelez-nous	-
2	WP2156003		End Cap, Door Trim   (Replaces: 2156003)			Immediately	$ 11.93
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
4	WP2221946W		Handle, Refrigerator (white)   (Replaces: 2221946W)			Immediately	$ 117.10
5	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
6	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
7	WP2319266T		Door Gasket, Magnetic (beige)   (Replaces: W10190034)				$ 154.44
8	WP2202819W		Screw Cover (white)   (Replaces: 2202819W)			Immediately	$ 7.33
9	2325418		Nameplate (silver)				$ 44.68
10	W11129820		Trim, Door   (Replaces: W10234242)			Immediately	$ 114.61
11	WP2183003		Thimble   (Replaces: 2262054)				$ 7.33
12	WP2266738		Trim, Door   (Replaces: 2266738)				$ 100.52
13	2263254W		Freezer Door (includes Item 15) (white)		Appelez-nous	-
14	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 6.99
15	WP2319263T		Door Gasket, Magnetic (beige)   (Replaces: W10190031)			Immediately	$ 194.27
16	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
17	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
18	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
19	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 108.51
20	WP2195916K		End Cap, Door Trim   (Replaces: 2195916)			Immediately	$ 11.86
21	WP2202098		Handle, Freezer (white)   (Replaces: 2202098)				$ 141.14

    View Diagram in Separate Window       Print Part List
