SELECT A DIAGRAM

01 - Cabinet Parts

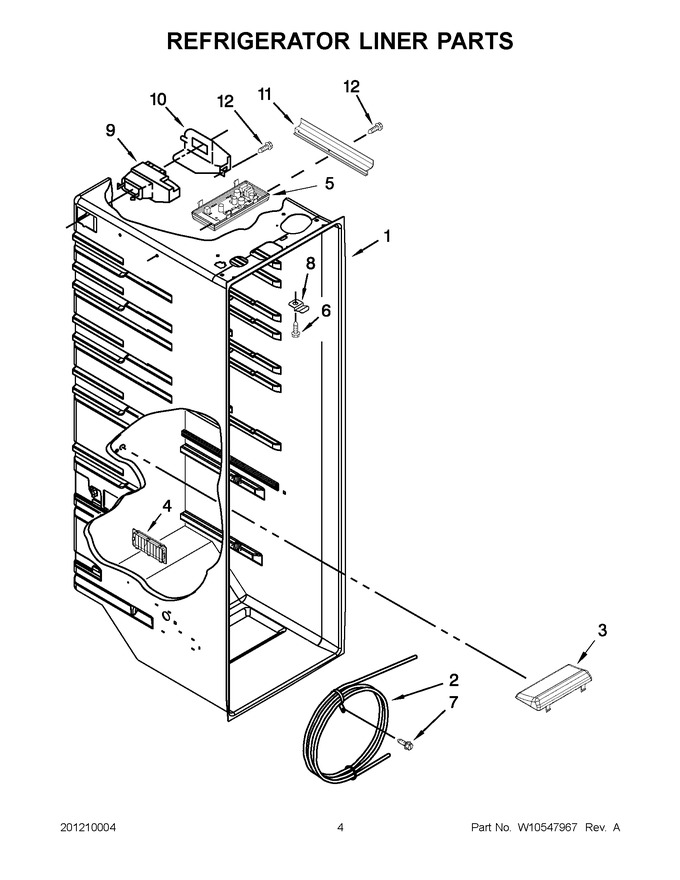

02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor & Ice Container Parts


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Parts


09 - Unit Parts


10 - Ice Maker


11 - Control Box Parts


12 - Air Flow Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	WPW10276792		Reservoir   (Replaces: W10276792)				$ 130.01
3	WPW10515057		Led Light Assembly Tapered Lens   (Replaces: W10398007)			Immediately	$ 42.56
4	2257741		Louver		Appelez-nous	-
5	WPW10515058		Led Light Assembly Flat Lens   (Replaces: W10522611)			Immediately	$ 33.41
6	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
7	488280		Screws		Appelez-nous	-
8	2311612		Clip, Control Box		Appelez-nous	-
9	WPW10151374		Air Diffuser Assembly   (Replaces: W10151374)			Immediately	$ 94.29
10	2152019		Cover, Air Diffuser				$ 81.30
11	W10252495		Cover, Wiring		Appelez-nous	-
12	W10759522		Screw   (Replaces: 486298)				$ 7.42

    View Diagram in Separate Window       Print Part List
