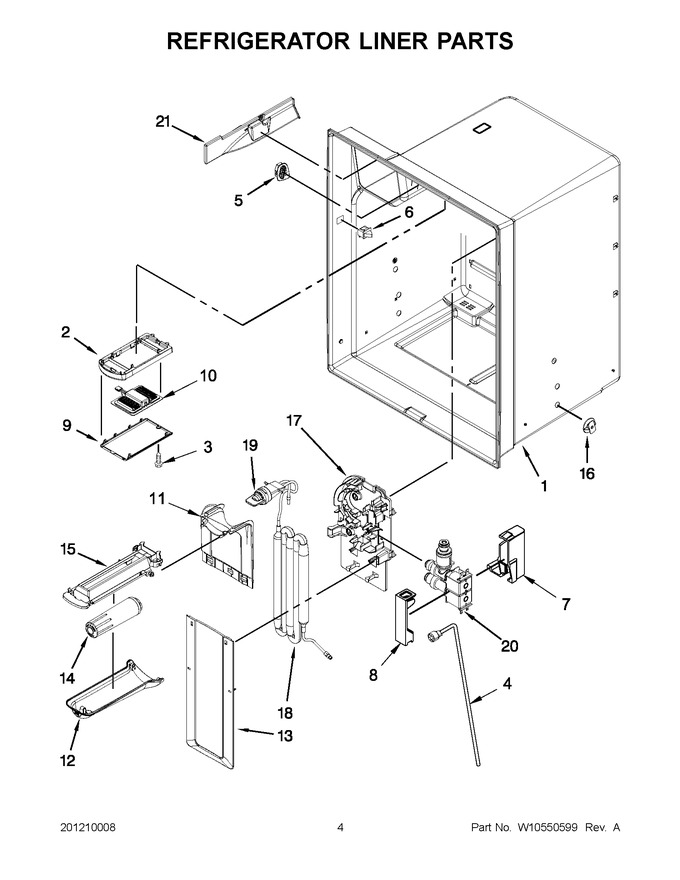

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11684721 | Housing-rc-led (Replaces: W10343359) |
|
$ 84.46 | |||||
| 3 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.36 | ||||
| 4 | WPW10444033 | Tube, Water (Replaces: W10444033) |
|
$ 117.35 | |||||
| 5 | W10555984 | Grille, Air (Replaces: W10396902) |
|
Immediately | $ 37.88 | ||||
| 6 | W11396033 | Switch, Light (Replaces: 12466114) |
|
Immediately | $ 33.57 | ||||
| 7 | W10118193 | Enclosure, Water Valve Connector |
|
$ 79.92 | |||||
| 8 | W10118194 | Lid, Enclosure |
|
- | |||||
| 9 | W10311756 | Lens, Rc Led |
|
$ 142.52 | |||||
| 10 | W11125428 | Module, Main Led (Replaces: W10289592) |
|
$ 476.85 | |||||
| 11 | 12960101 | Cover, Upper Water Tank |
|
$ 120.61 | |||||
| 12 | WP67006331 | Cover, Filter (Replaces: 12960301) |
|
Immediately | $ 106.53 | ||||
| 13 | 67006329 | Cover, Lower Water Tank (Replaces: 12960001) |
|
$ 179.06 | |||||
| 14 | EDR4RXD1B | Filter, Water (Replaces: 4396395) |
|
Immediately | $ 49.99 | ||||
| 15 | 67006325 | Bracket, Filter Base (Replaces: 12955901) |
|
Immediately | $ 94.85 | ||||
| 16 | W10190541 | Mount, Crisper Support |
|
$ 11.89 | |||||
| 17 | WPW10334463 | Bracket, Water Tank & Valve (Replaces: W10334463) |
|
$ 56.42 | |||||
| 18 | W11346622 | Assembly, Water Tank & Head (Replaces: W10418477) |
|
Immediately | $ 159.98 | ||||
| 19 | W11395888 | Cartridge, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 45.65 | ||||
| 20 | WPW10464773 | Valve, Dual Water (Replaces: W10464773) |
|
$ 205.23 | |||||
| 21 | WPW10309869 | Cover, Wiring (Replaces: W10309869) |
|
$ 103.19 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10459600 | Harness, Rc Light |
|
- |
